The accessories for the Graphic cameras are incountable. Here are just some that count for me:

jpgodd/graflex_pacemaker_crown_graphic_IMG_0335.JPG
An old case, a typical outfit for a press photographer.

jpgodd/graflex_pacemaker_crown_graphic_IMG_0336.JPG
There is space for the camera, lenses, filters, flash and quite some holders.

jpgodd/graflex_graphic_accessories_IMG_0674.JPG

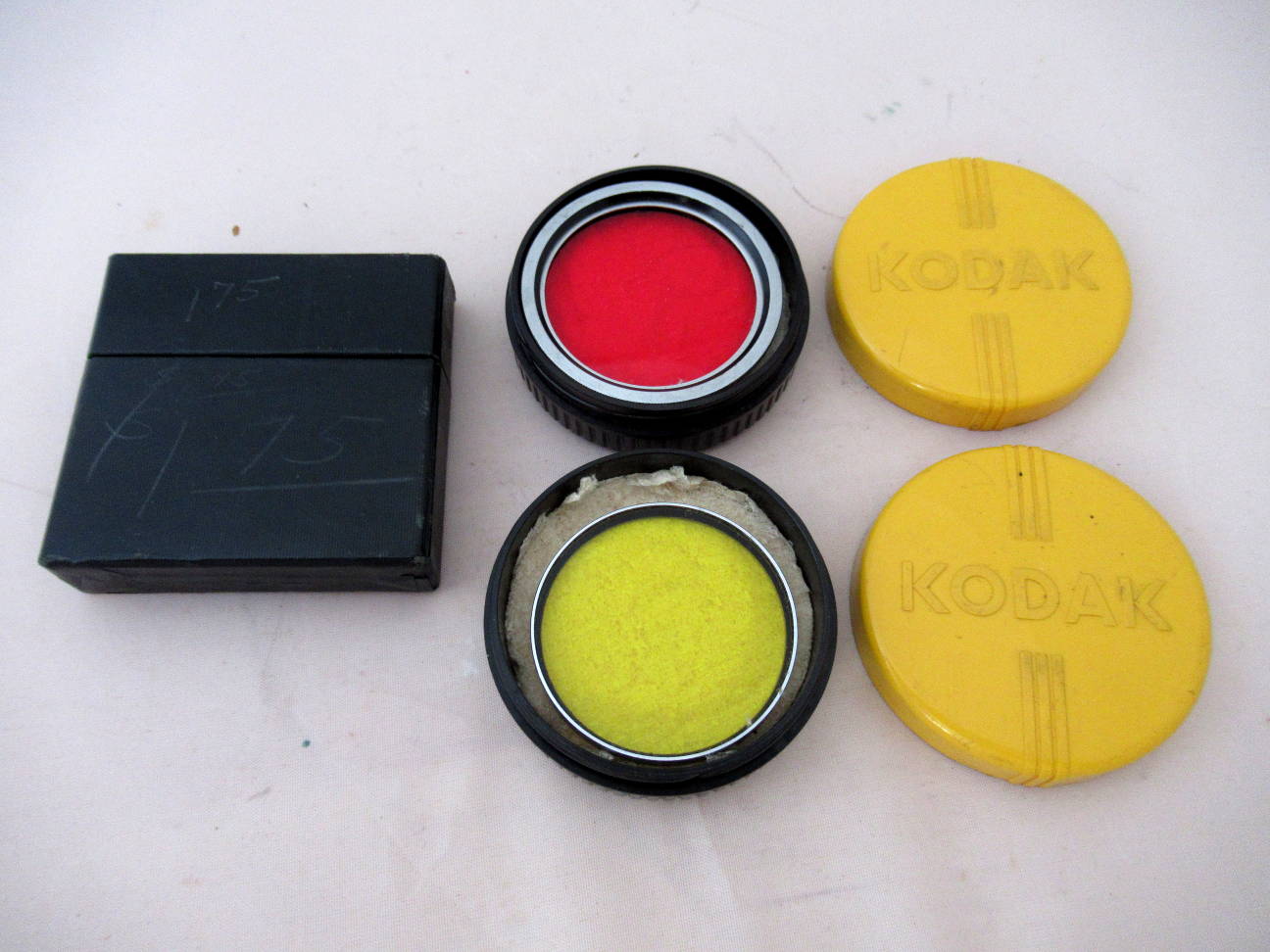

Some filters for b&w film.

jpgodd/graflex_graphic_saber_flash_IMG_0660.JPG

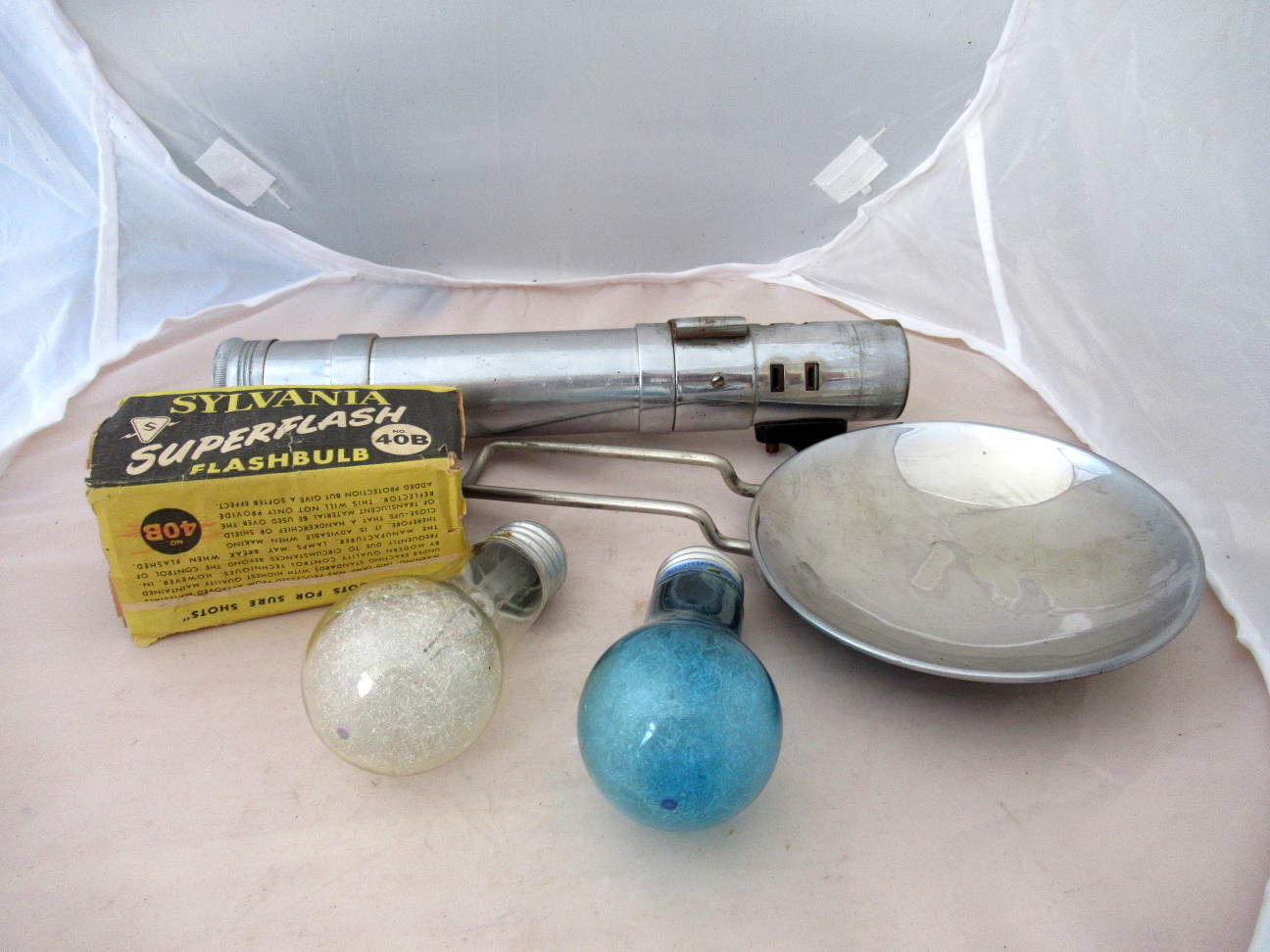

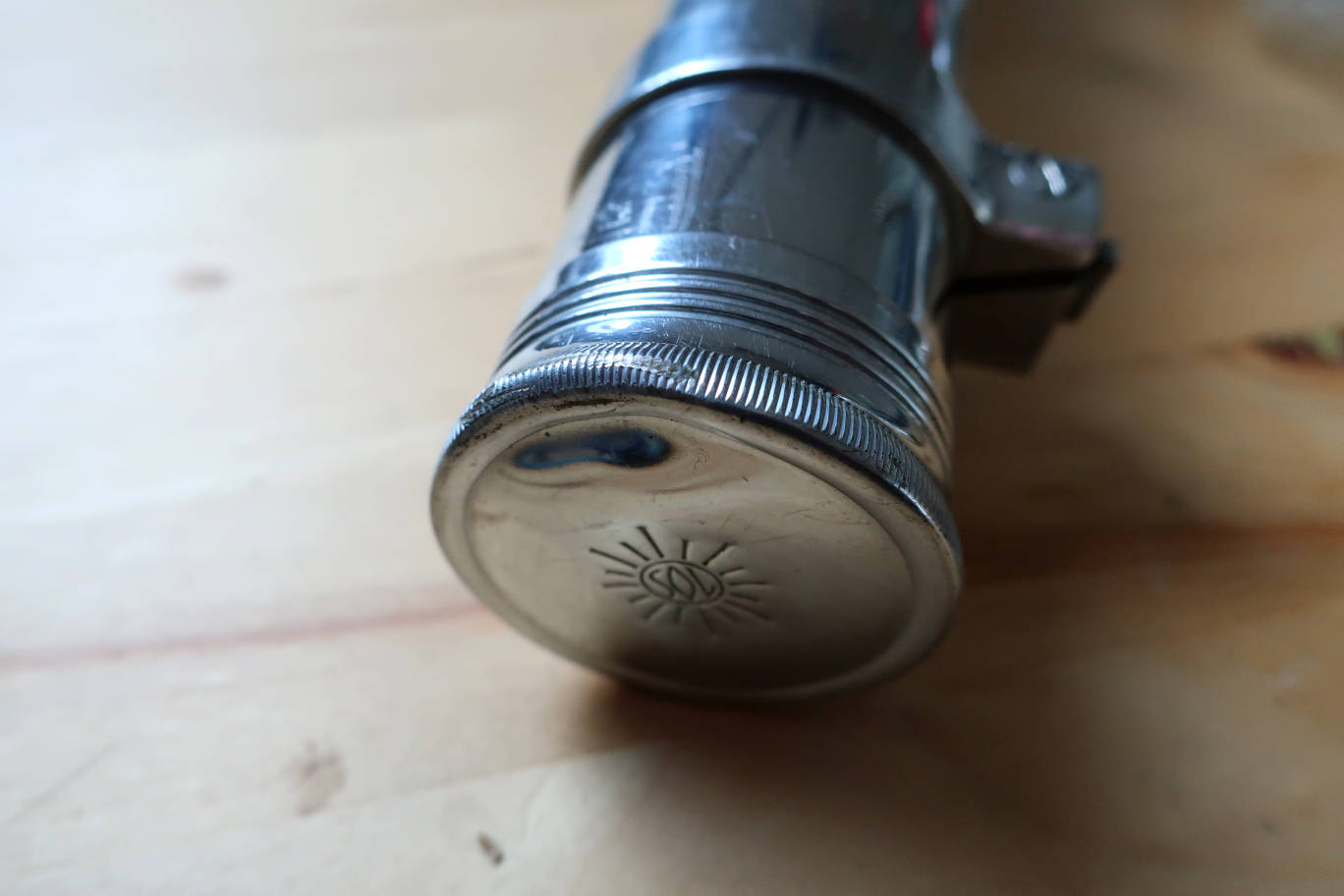

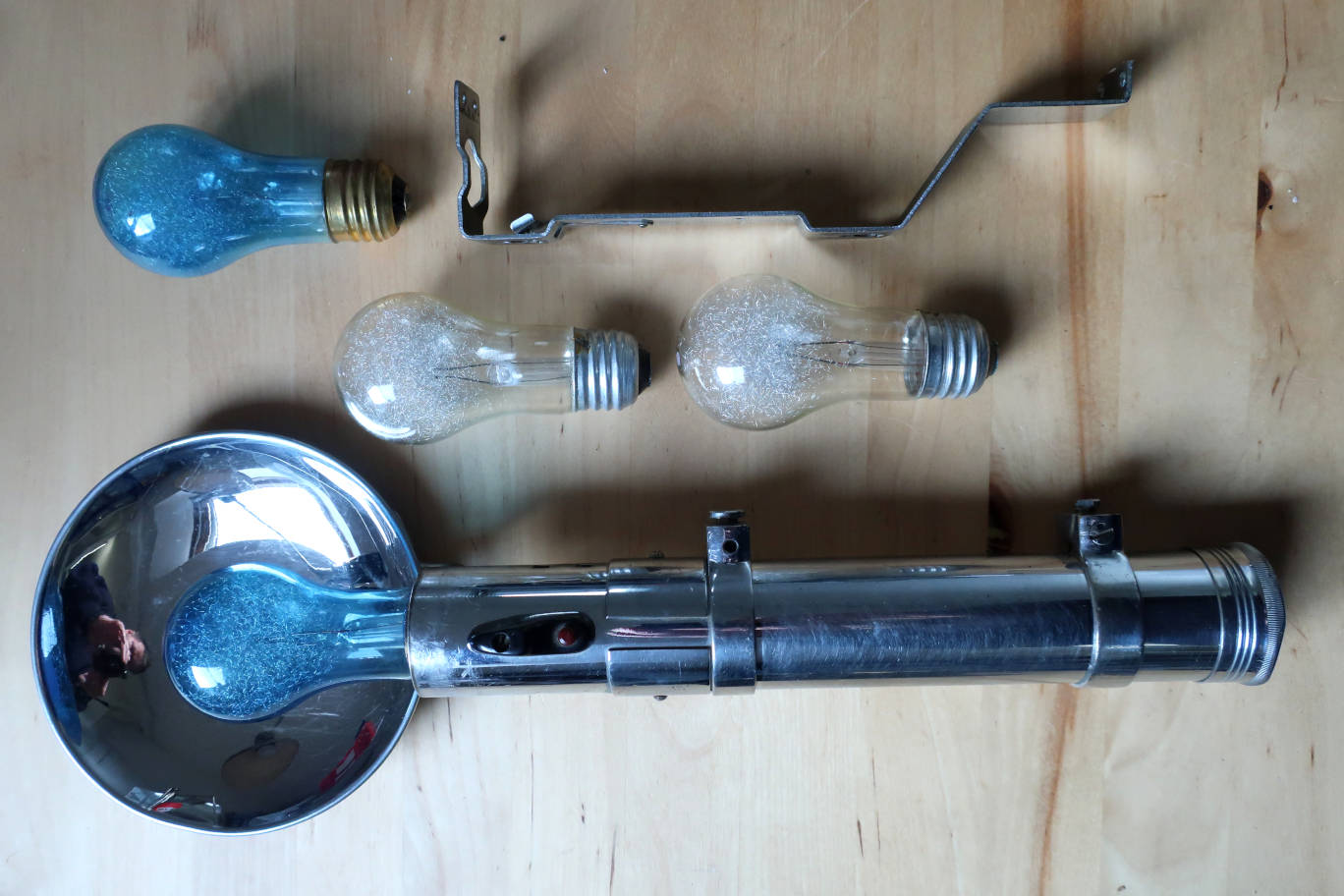

The Flash Light and its enormous bulbs. The flash is even known outside the Graflex community, as the handle became the lightsaber in Star Wars films.

jpgodd/graflex_graphic_saber_flash_IMG_0666.JPG
Flash mounted.

jpgodd/graflex_graphic_saber_flash_IMG_0667.JPG

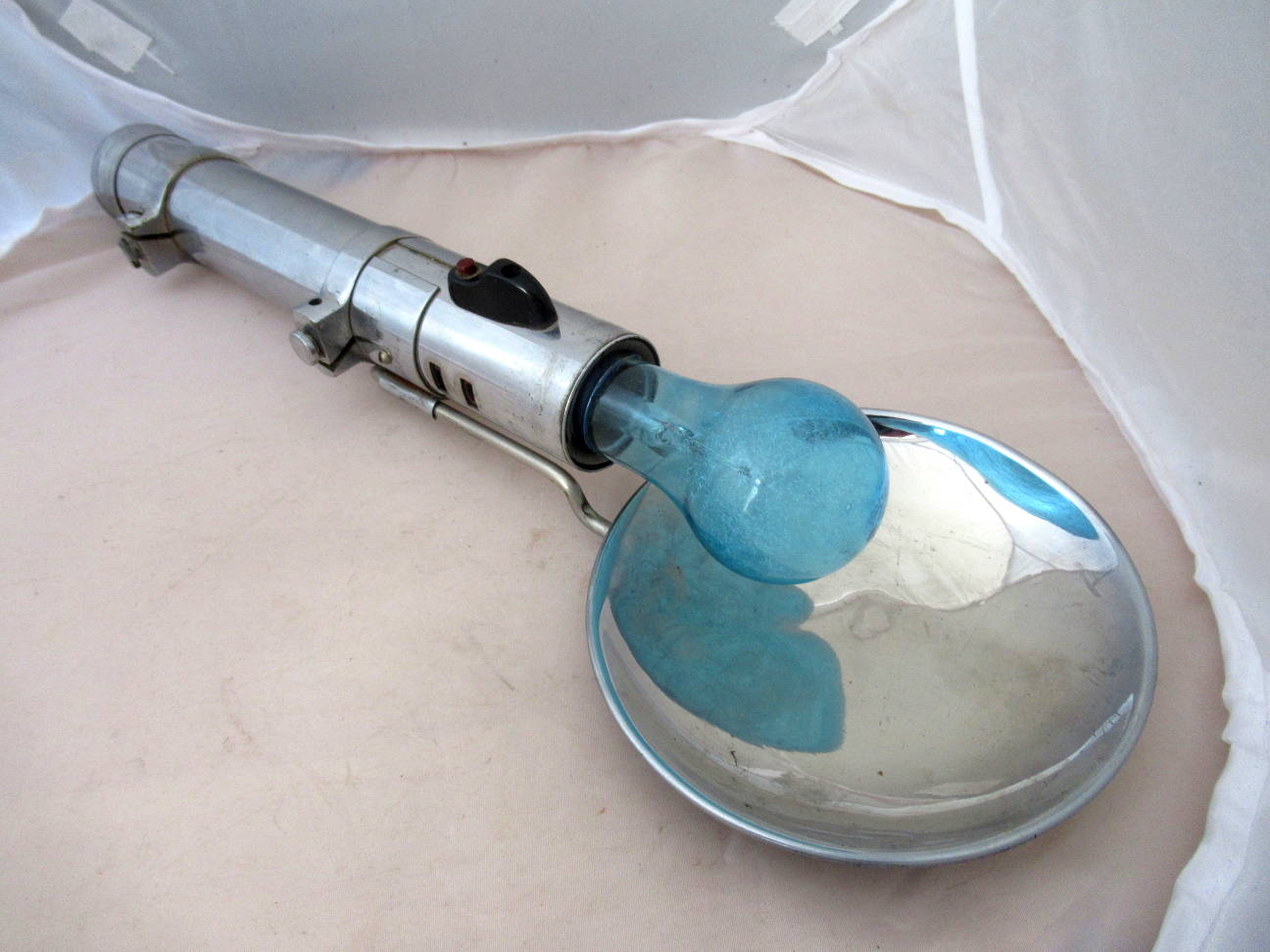

It's quite big and the bulbs delivered a guide number of 250 (!) at 100 ISO.

jpgodd/graflex_graphic_saber_flash_IMG_0669.JPG

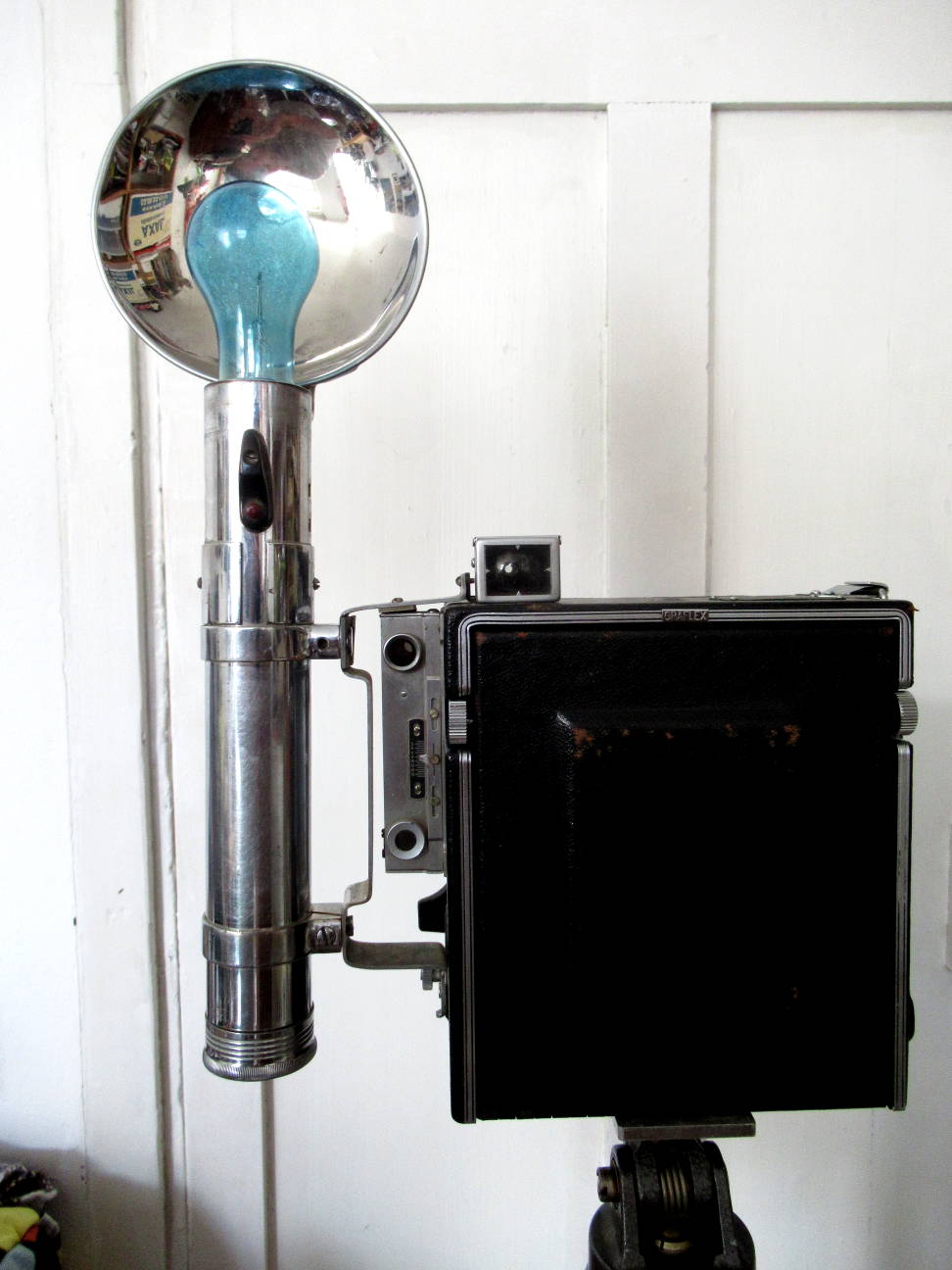

Flash mounted on a Speed.

jpgodd/graflex_graphic_saber_flash_IMG_0671.JPG

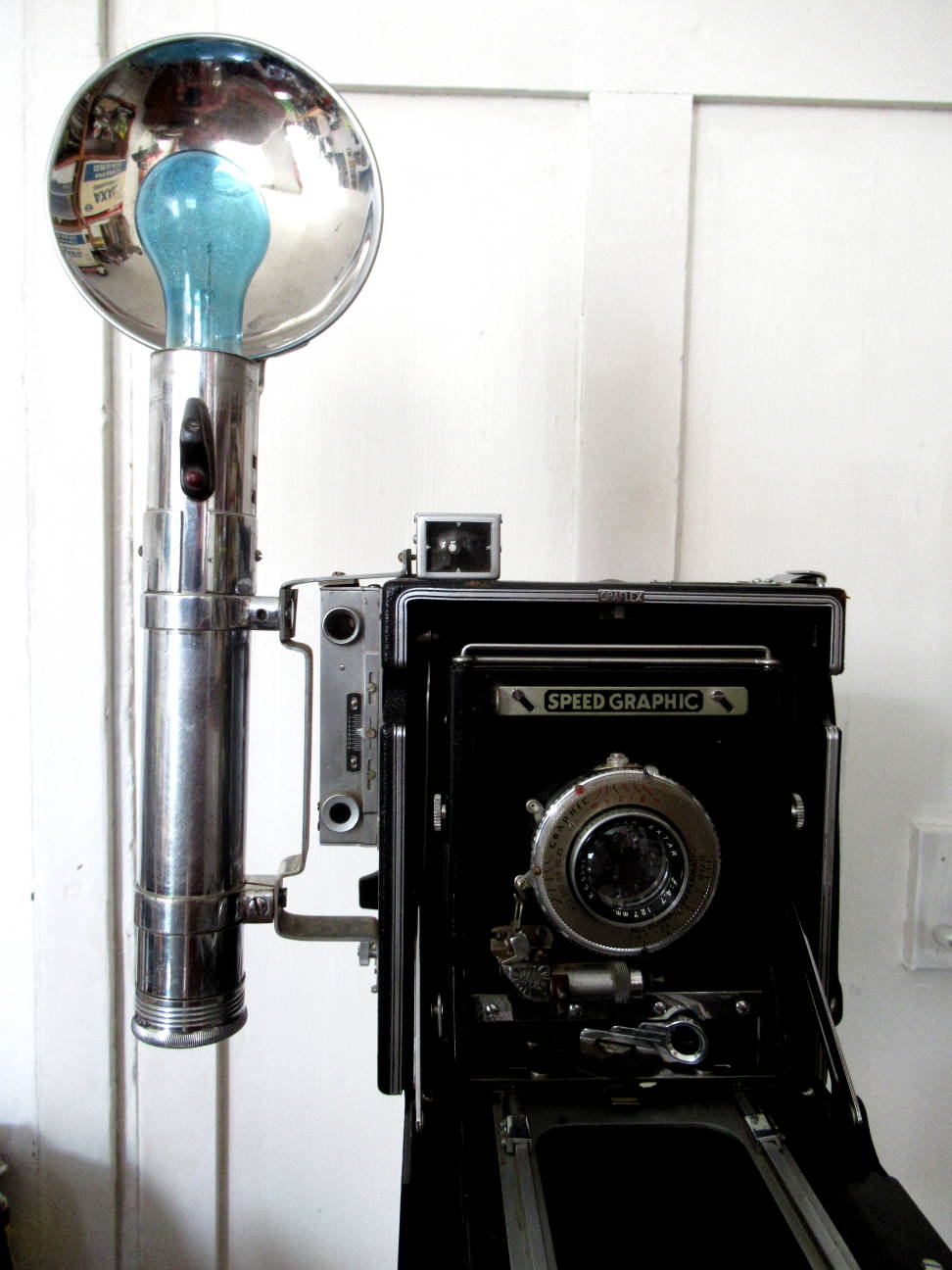

Camera and flash.

jpgodd/graflex_grafmatic_IMG_0675.JPG
An important accessory: the Grafmatic 4x5 film holder. it's the size of a double film holder, but contains 6 sheets of film. Camera side. Dark slide in place.

jpgodd/graflex_grafmatic_IMG_0676.JPG
It's freshly loaded, no. 1 showing. dark slide shut, the red dot next to the number is covered.

jpgodd/graflex_grafmatic_IMG_0677.JPG

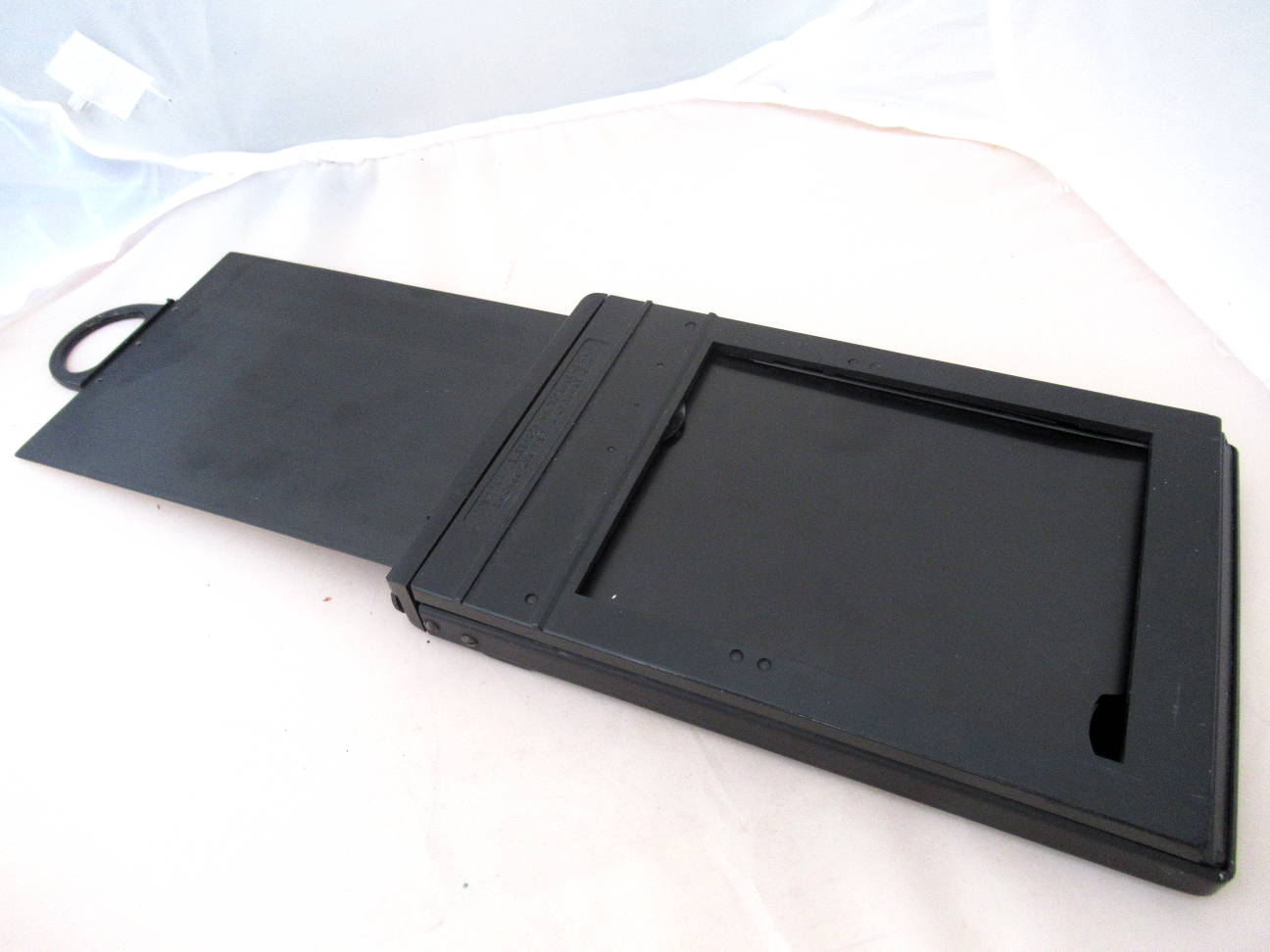

To open the dark slide, just pull it out...

jpgodd/graflex_grafmatic_IMG_0679.JPG

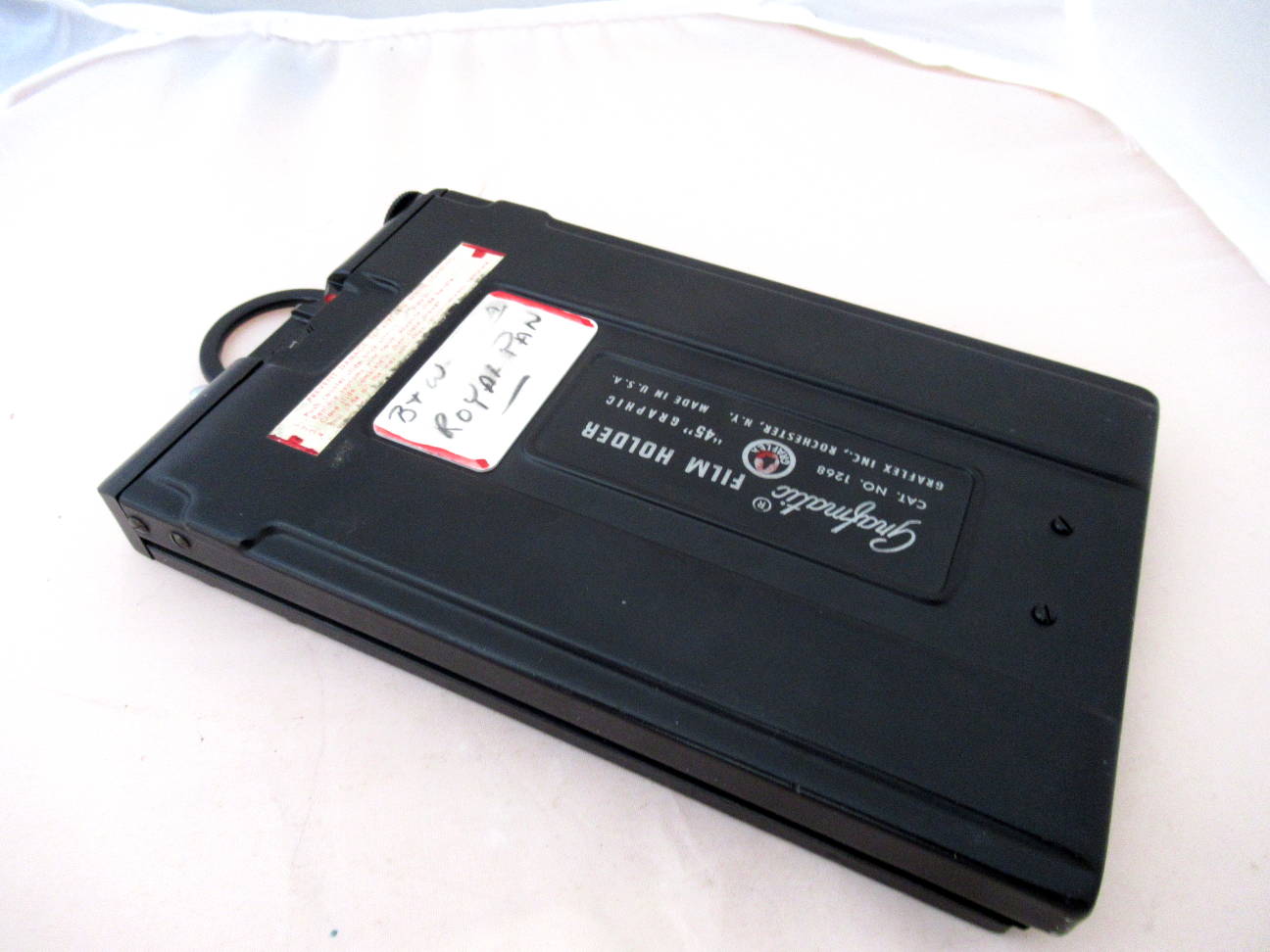

...and push it back again. If you look closely, the red dot is now showing to warn you.

jpgodd/graflex_grafmatic_IMG_0681.JPG
To move the next sheet up, just push the silver tab next to the handle towards it, keep it pushed and pull the whole unit out. The next sheet is moved up and covered by the dark slid. The numbering moves to no. 2. Push the unit back and you are done. You can either take the holder off or continue by pulling the dark slide again.

jpgodd/graflex_grafmatic_IMG_0681.JPG
An ordinary matte screen.

jpgodd/graflex_pacemaker_crown_graphic_fresnel_IMG_2727.JPG
The same screen with a fresnel lens in front of it. it's much more luminous. There are discussions about the usefulness and about calibrating issues, I just use them and have no problems. But I'm not into close-ups and I don't do big enlagements...

jpgodd/graflex_pacemaker_crown_90mm_IMG_2149.JPG

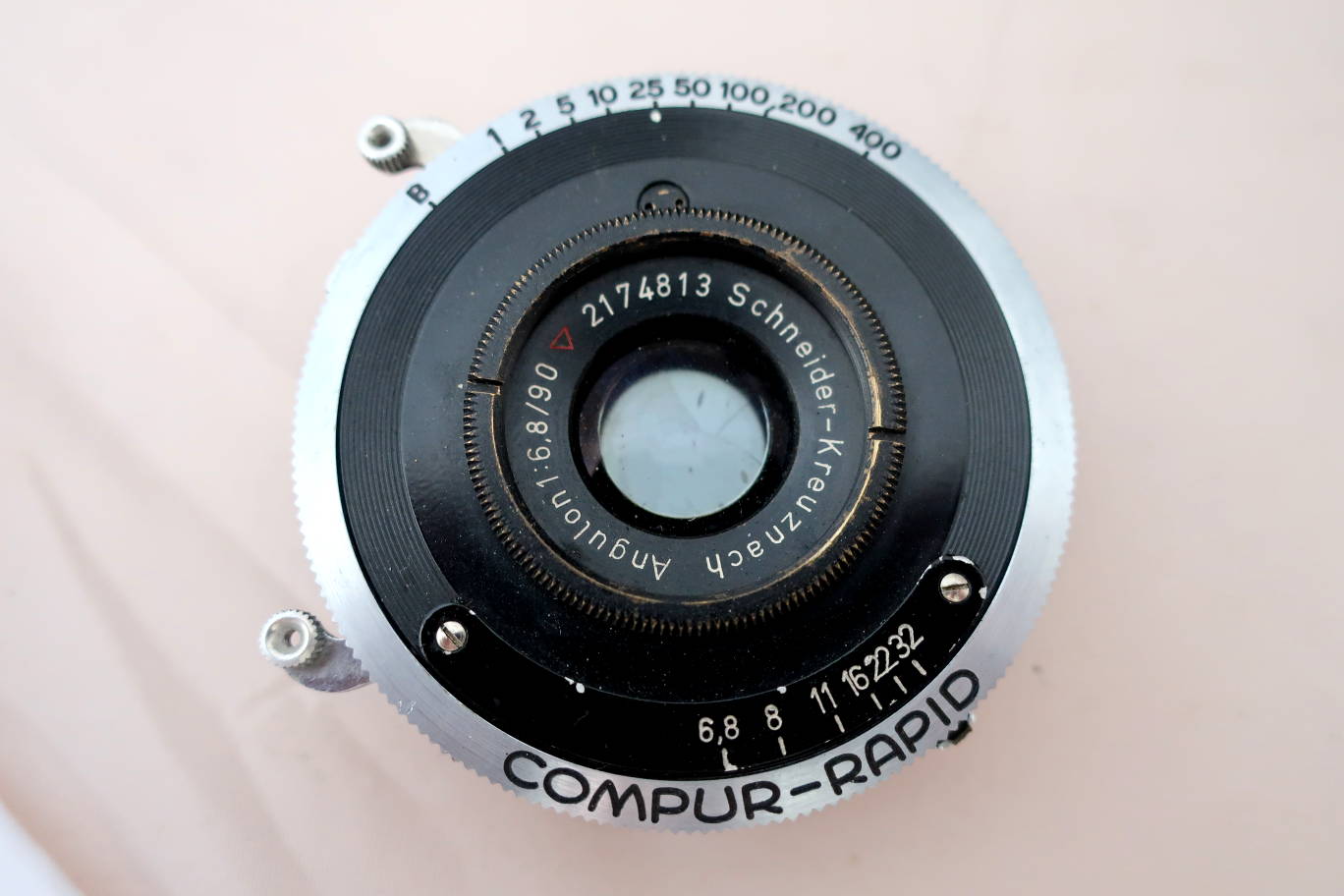

A 90mm Angulon wide angle, a very small and compact lens.

jpgodd/graflex_pacemaker_crown_90mm_sa_IMG_2153.JPG

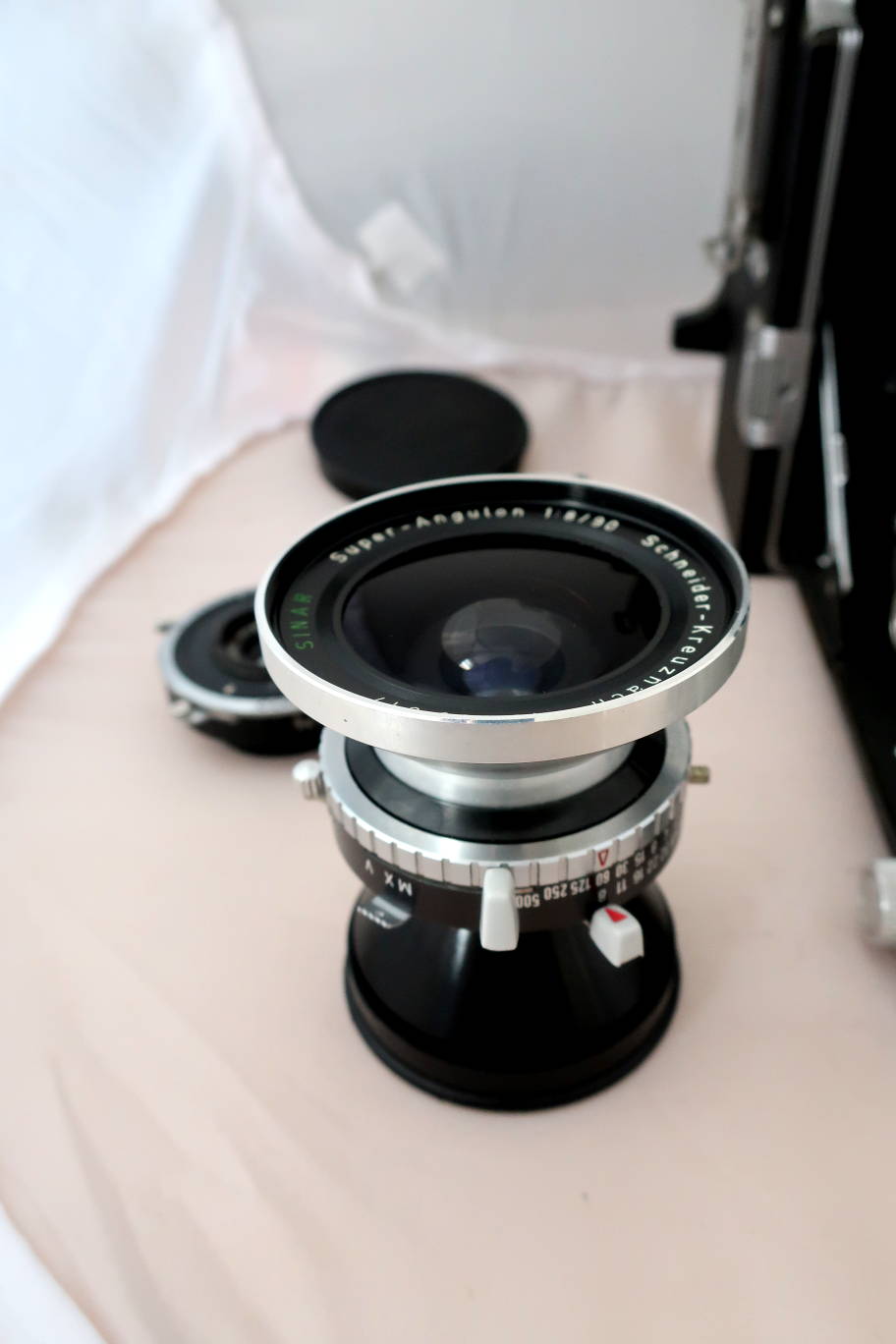

A 90mm wide angle Super Angulon, an enormous lens, not to use with focal plane shutter models. Contrast is better than the Angulon.

jpgodd/graflex_pacemaker_crown_127mm_IMG_2151.JPG
A standard 127mm Wollensak Velostigmat.

jpgodd/graflex_anniversary_speed_graphic_IMG_0330.JPG

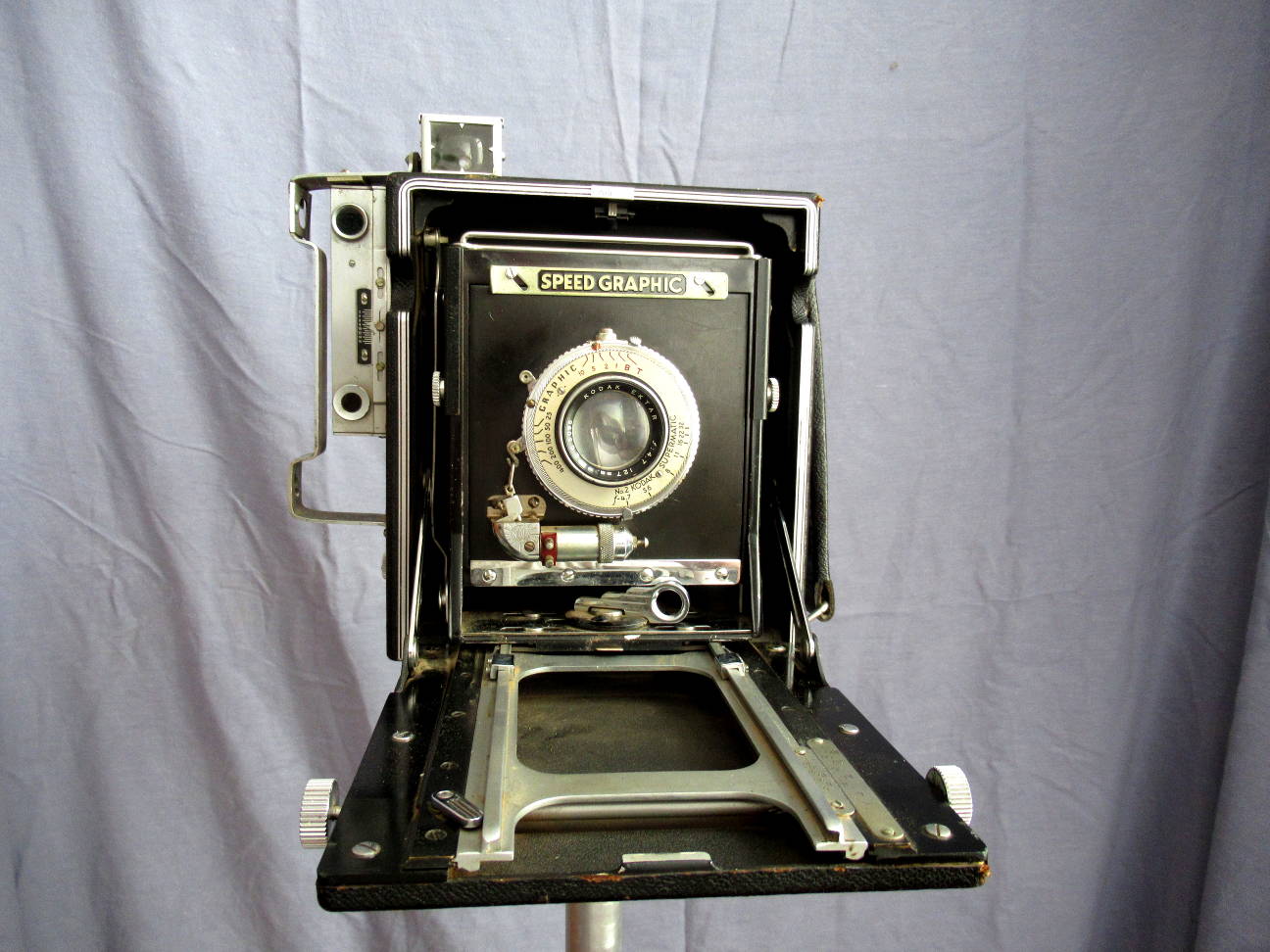

Another standard 127mm, a Kodak Ektar.

jpgodd/graflex_pacemaker_crown_150mm_IMG_2150.JPG
A third standard lens, a 150mm Zeiss Tessar.

jpgodd/graflex_pacemaker_crown_graphic_IMG_0350.JPG
A
180mm Fujinon which is a wide angle for a larger format, but can be used for portraits on the Crown. It has an odd thread of 45mm diameter, so I had a lens board 3D printed. Works like a charm and it is cheap to buy.

jpgodd/graflex_pacemaker_crown_IMG_2156.JPG

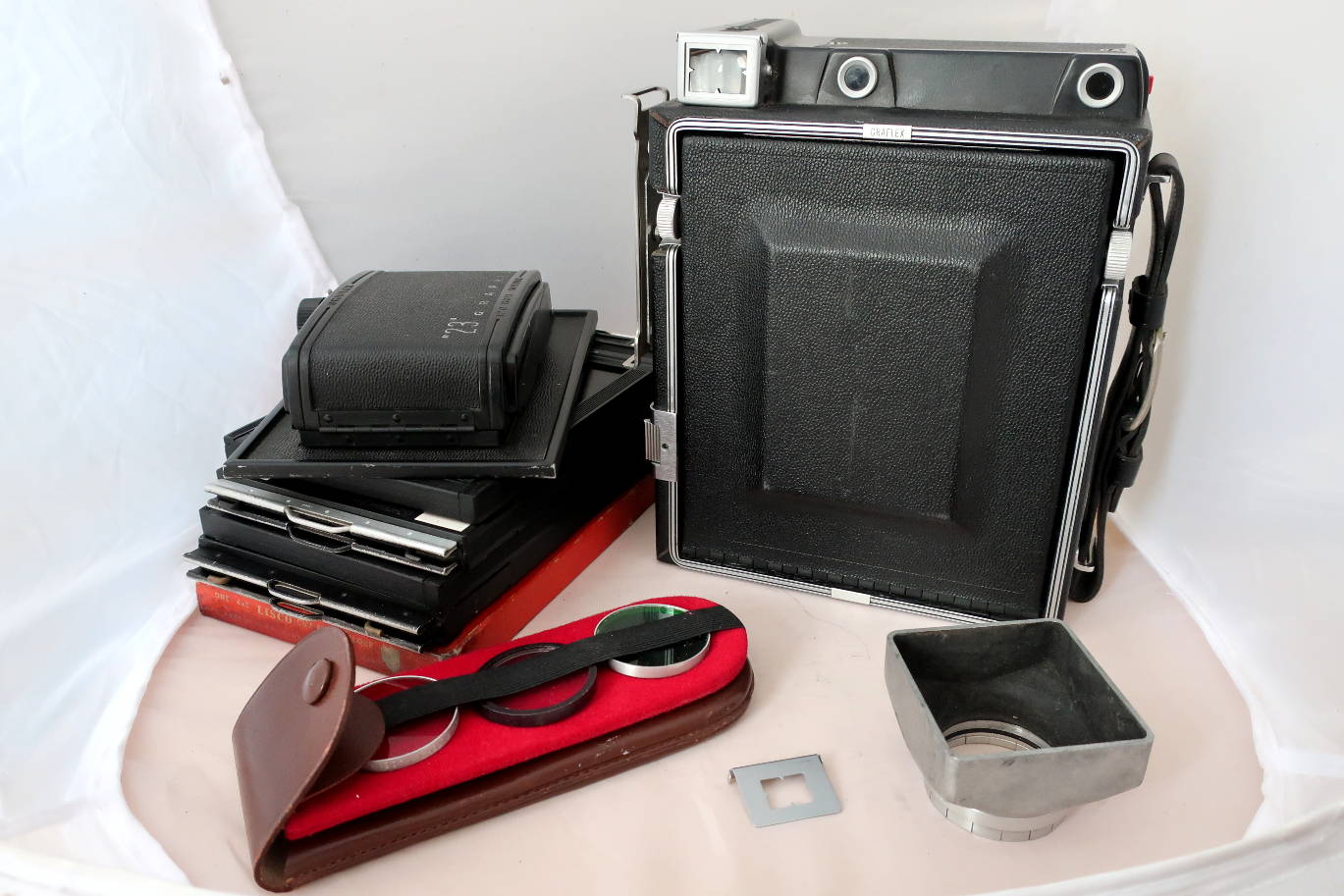

Some more accessories, holders, a roll film back, filters, a shade and a viewing mask.
