OddCameras.com                          Graflex Anniversary Speed Graphic

The Graflex Graphic cameras were "the" standard American Press cameras from the late 30s to the 60s. As they are relatively compact and easy to use, they were also widely used for other than press purposes. They kept in production until 1973. The tooling was then sold to Toyo.

This is a Graflex Anniversary Speed Graphic 4x5 camera. It was manufactured between 1940 and 47. It has a fixed horizontal "Graphic'' type back, also called "spring back" which accepts standard modern 4x5 film holders, but no modern roll-film backs. The Anniversary has a
rear focal plane shutter with its shutter release, but no release for the front shutters. The lens standard offers front rise and shift, a drop bed, but no tilts or swings. The lensboards are Graphic "C" boards, which are 4x4 inches and usually made of wood.

Most Anniversary cameras come with a coupled rangefinder, as this one.

The camera is 22 x 19.5 x 11 cm including finder and grip, but w/o flash fixation and weighs 2470 gr. without lens.

Some photos:

jpgodd/graflex_anniversary_speed_graphic_IMG_0326.JPG

jpgodd/graflex_anniversary_speed_graphic_IMG_0327.JPG

jpgodd/graflex_anniversary_speed_graphic_IMG_0328.JPG

jpgodd/graflex_anniversary_speed_graphic_IMG_0329.JPG

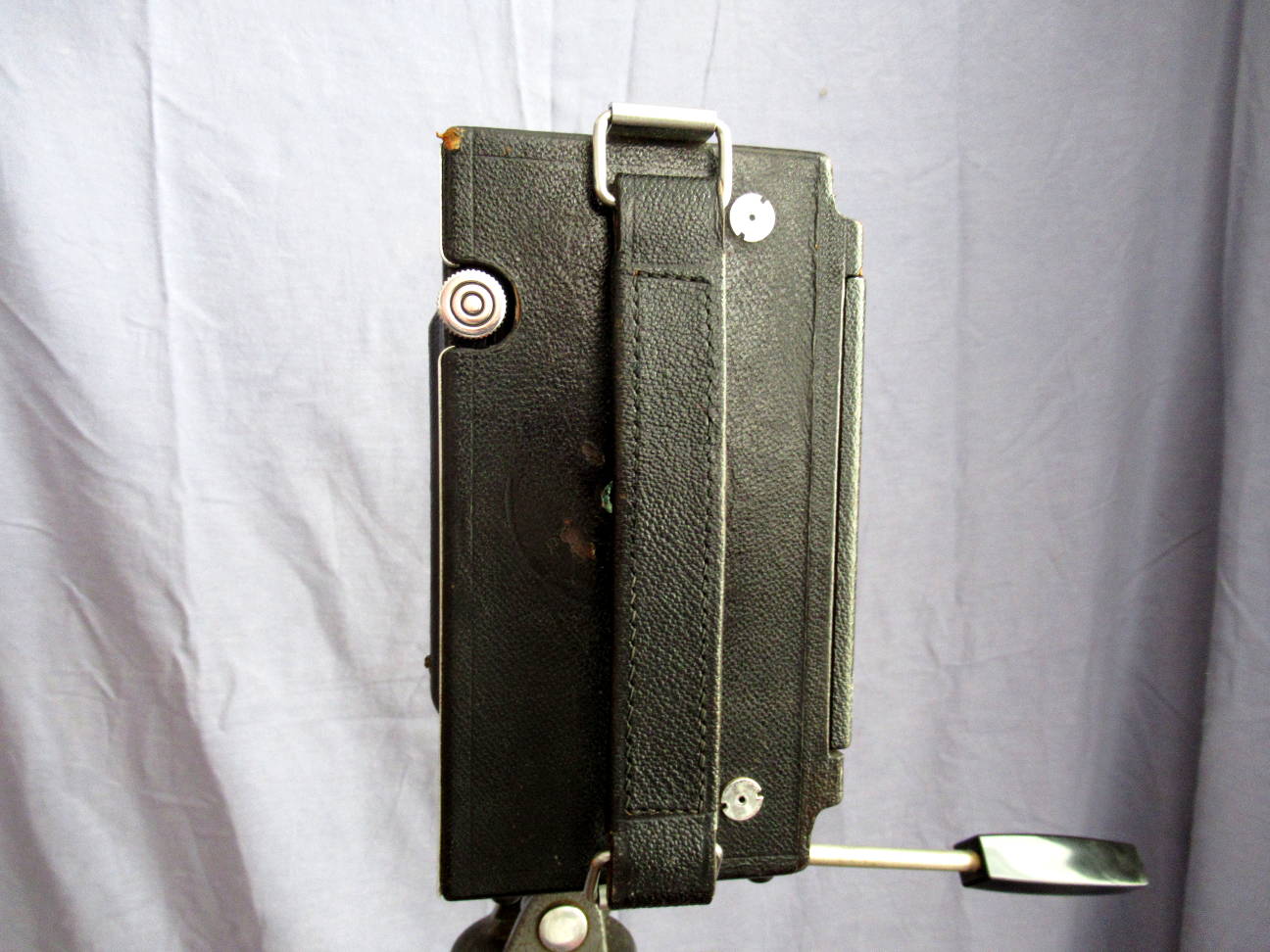

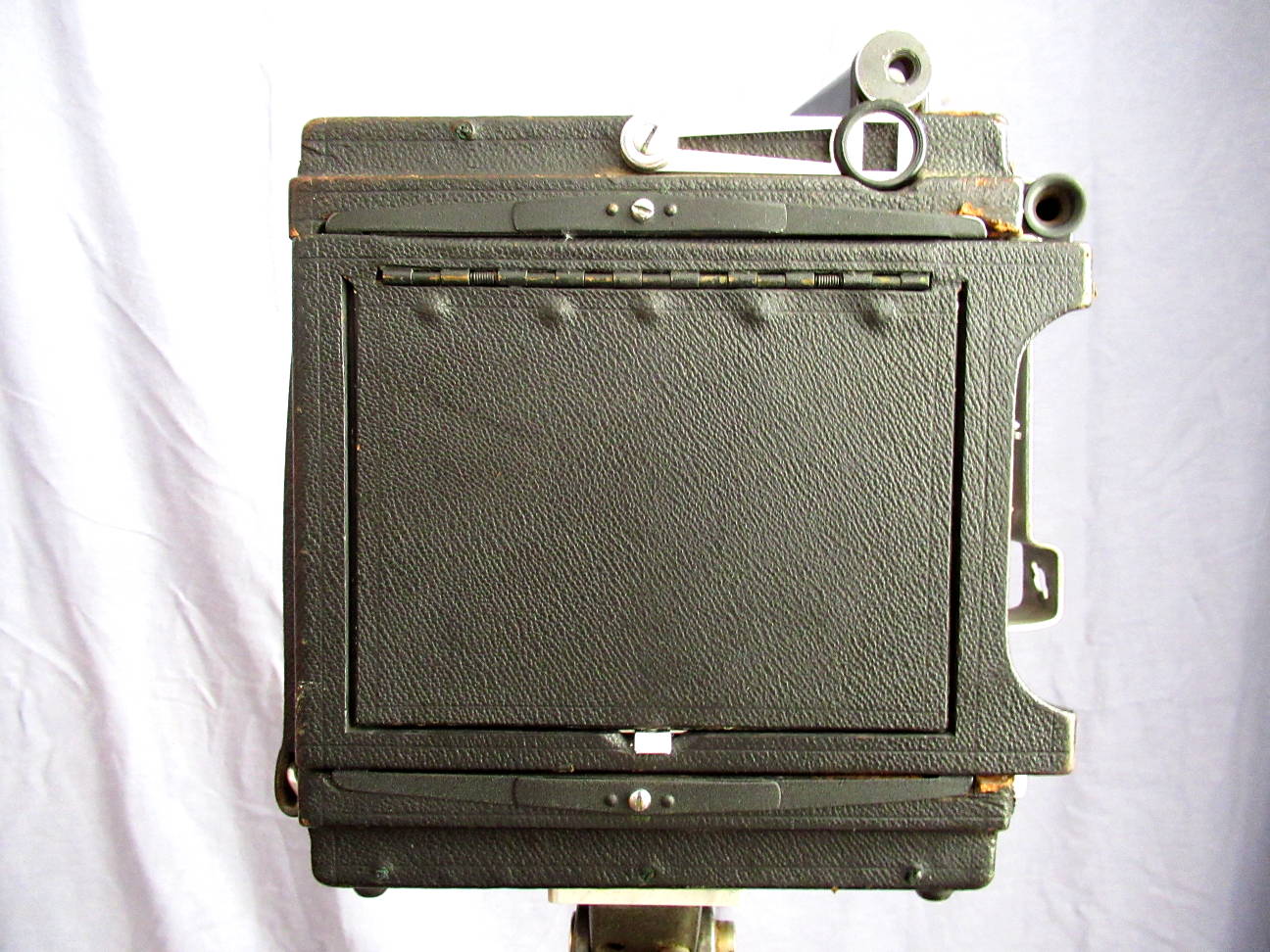

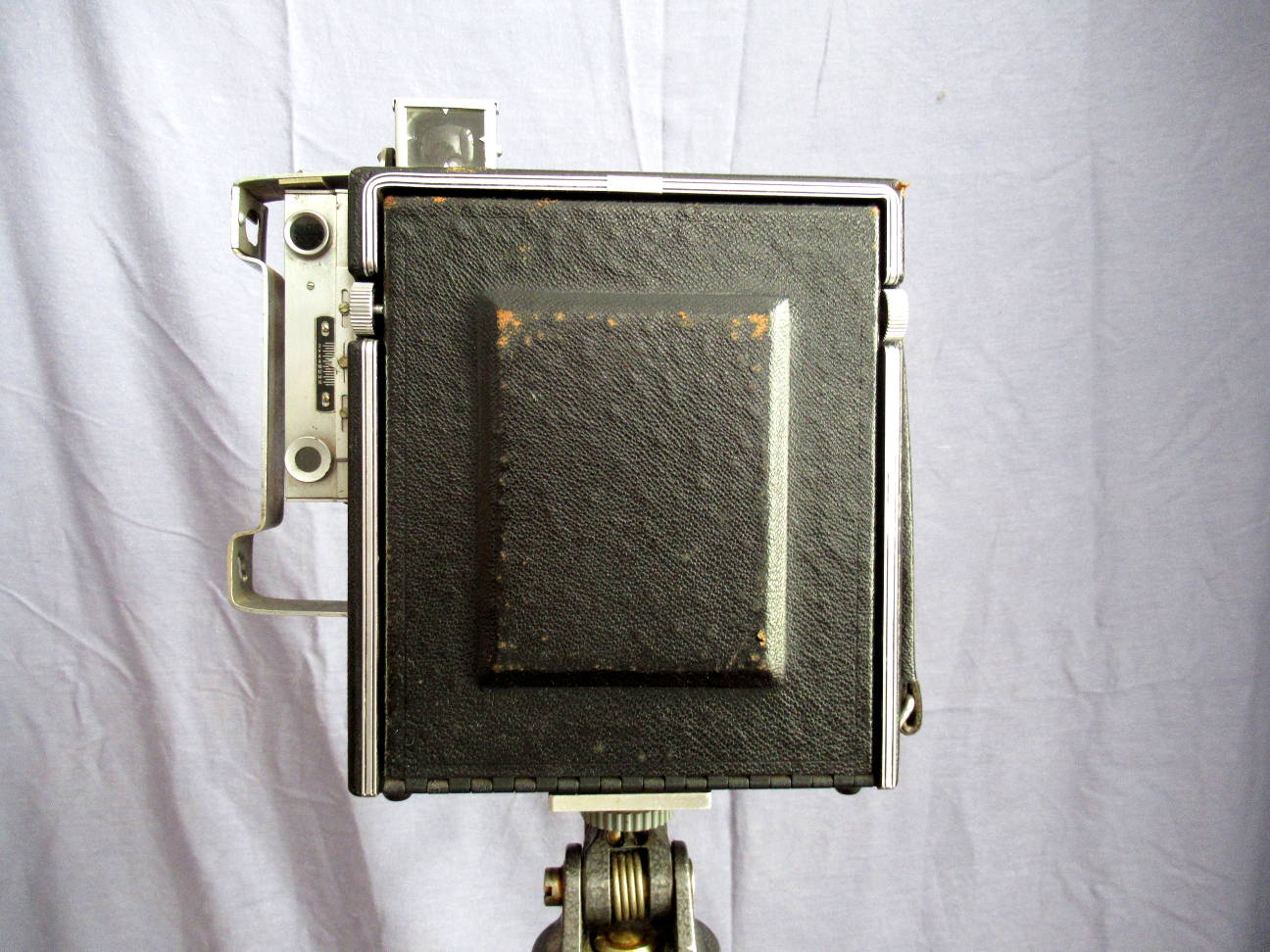

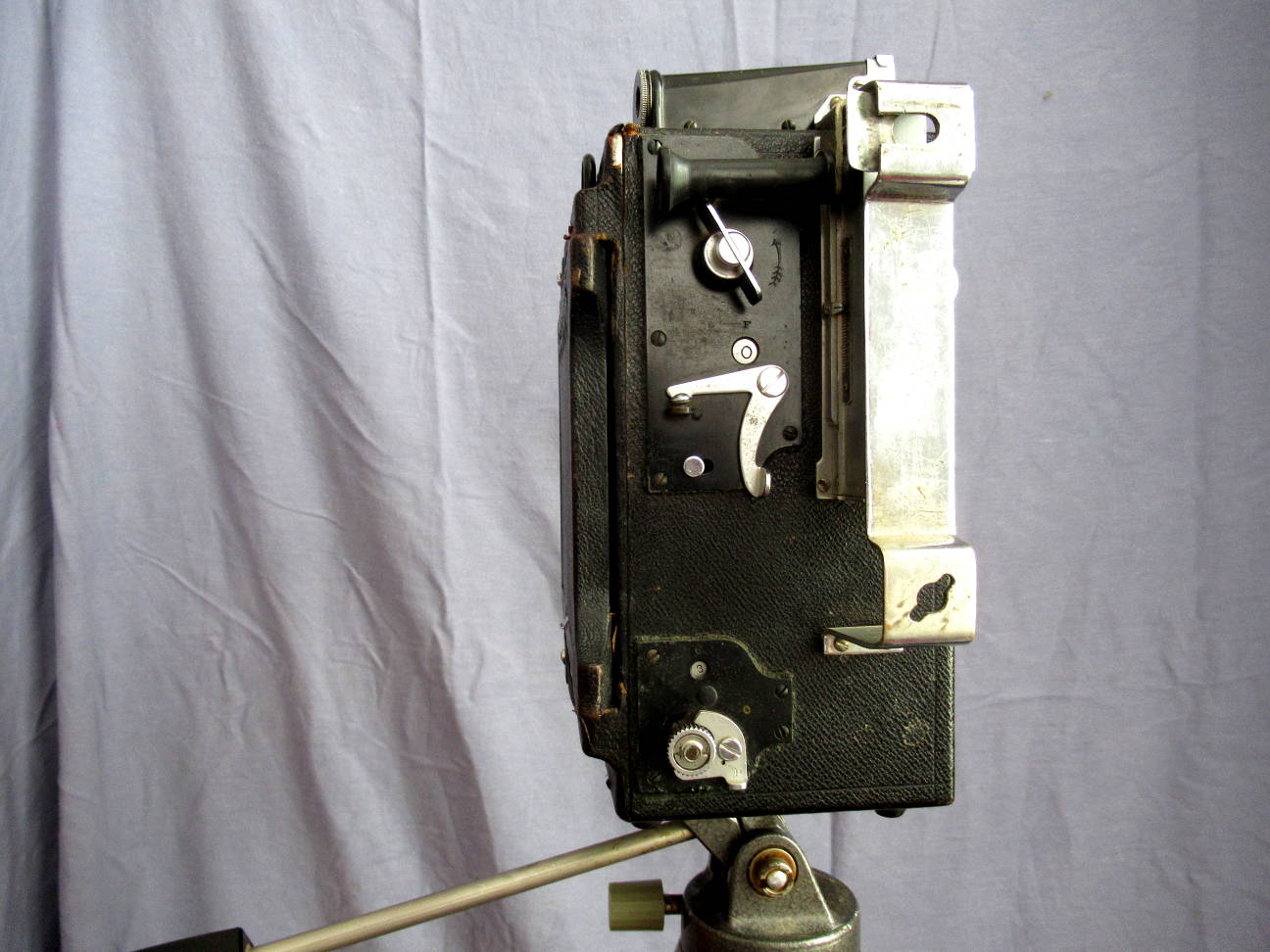

Case closed, from all sides.

jpgodd/graflex_anniversary_speed_graphic_IMG_0330.JPG

jpgodd/graflex_anniversary_speed_graphic_IMG_0331.JPG

jpgodd/graflex_anniversary_speed_graphic_IMG_0332.JPG

jpgodd/graflex_anniversary_speed_graphic_IMG_0333.JPG

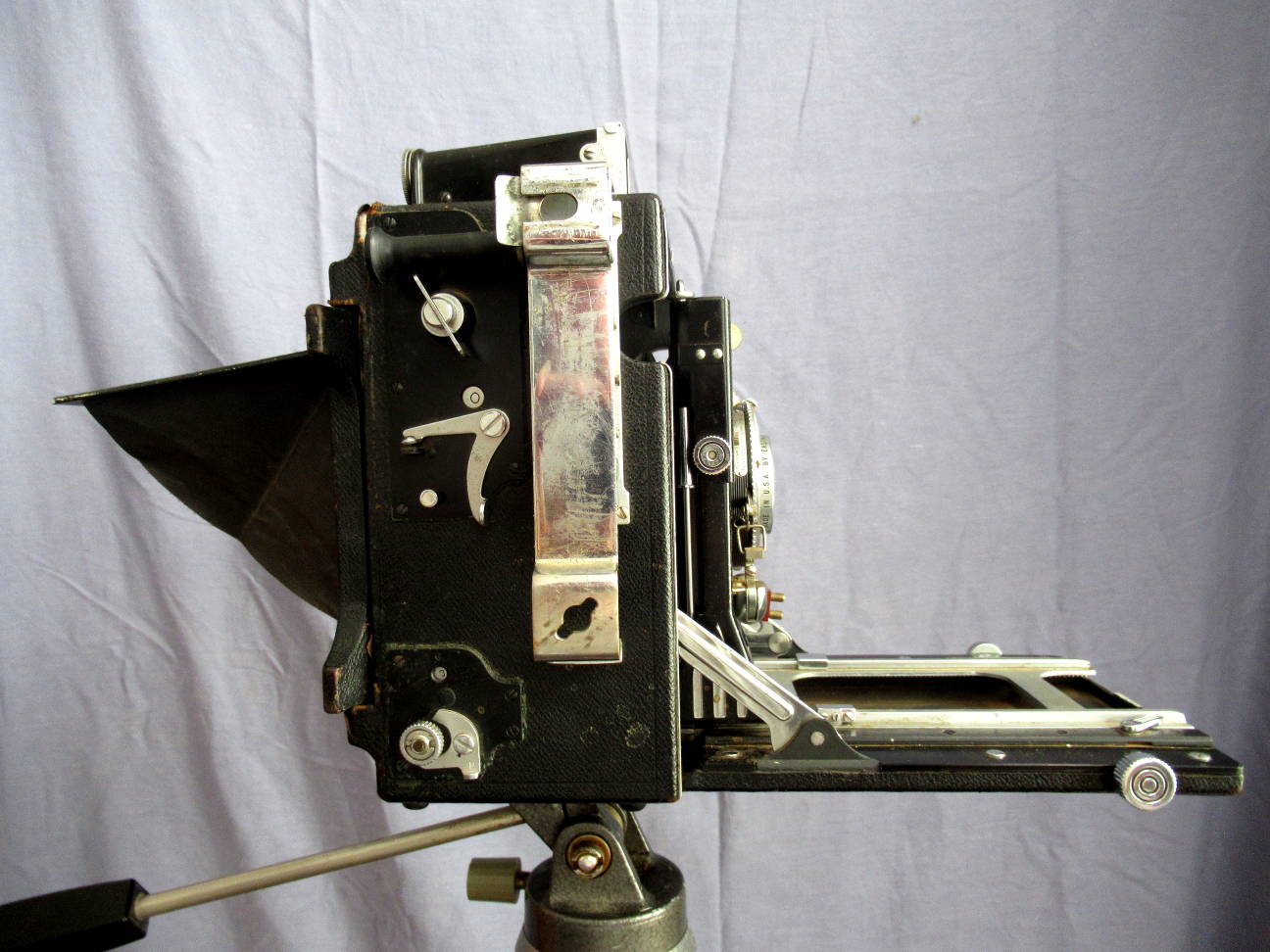

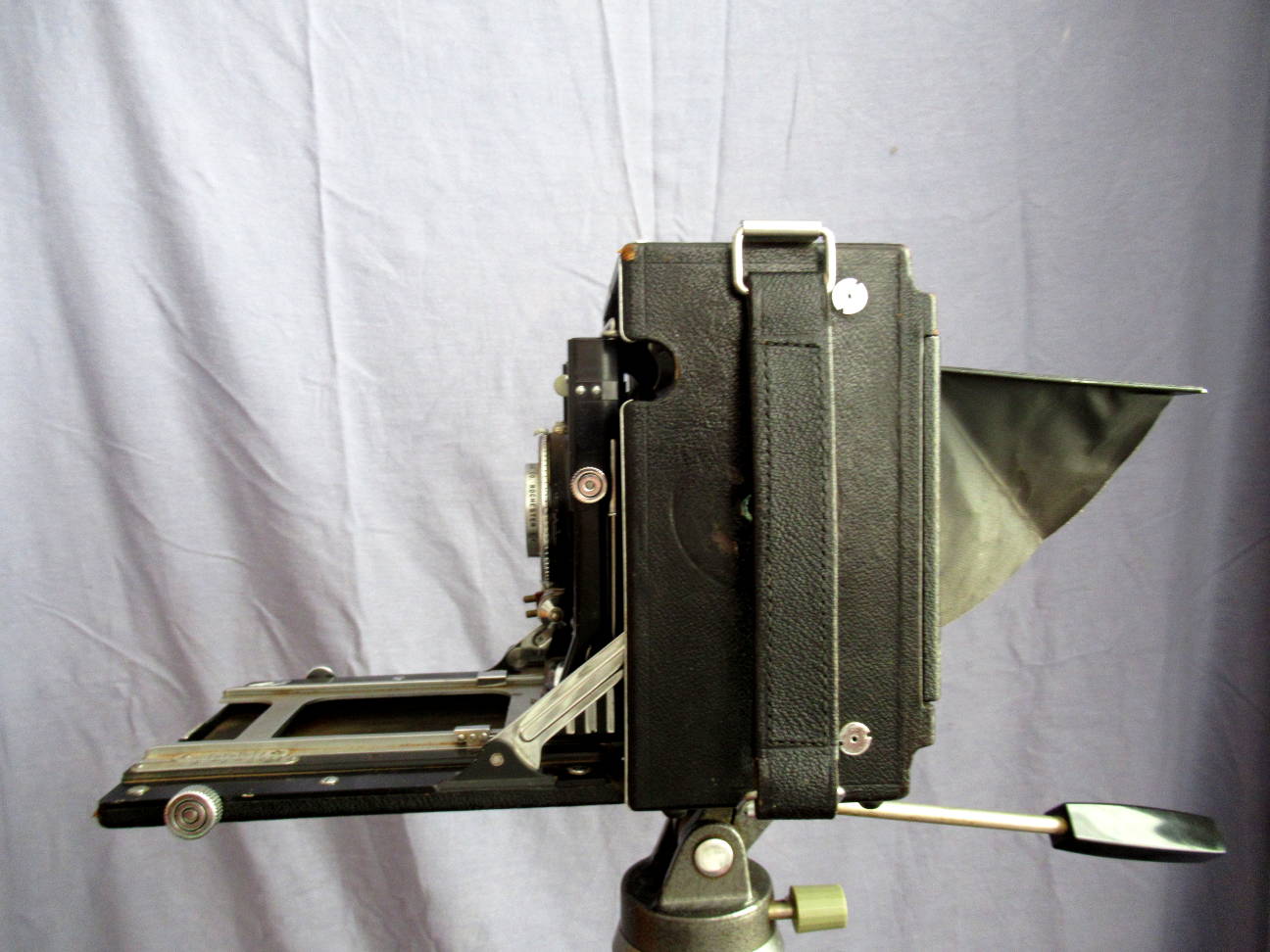

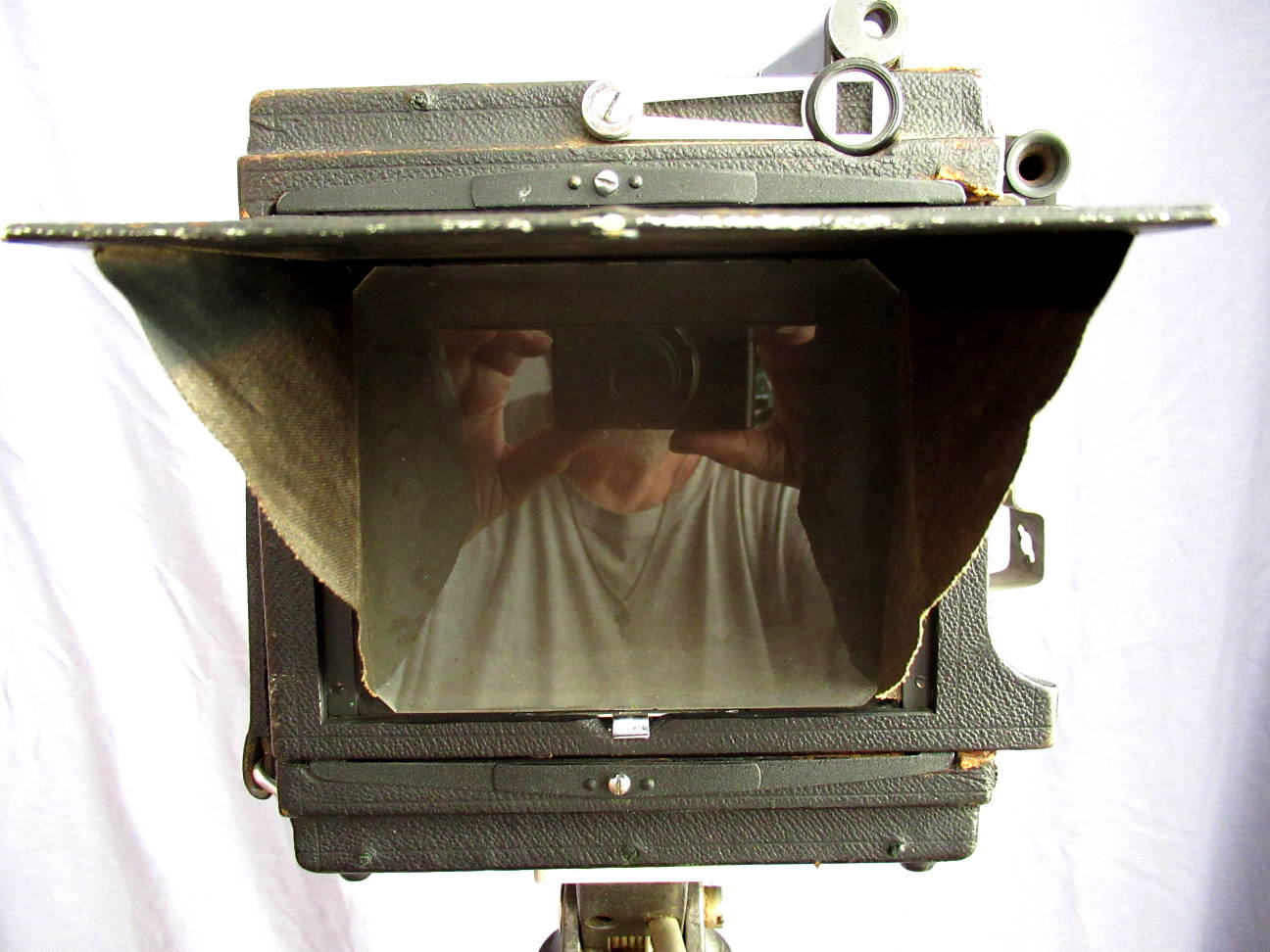

Open, with standard 127mm lens.

jpgodd/graflex_anniversary_speed_graphic_IMG_0334.JPG

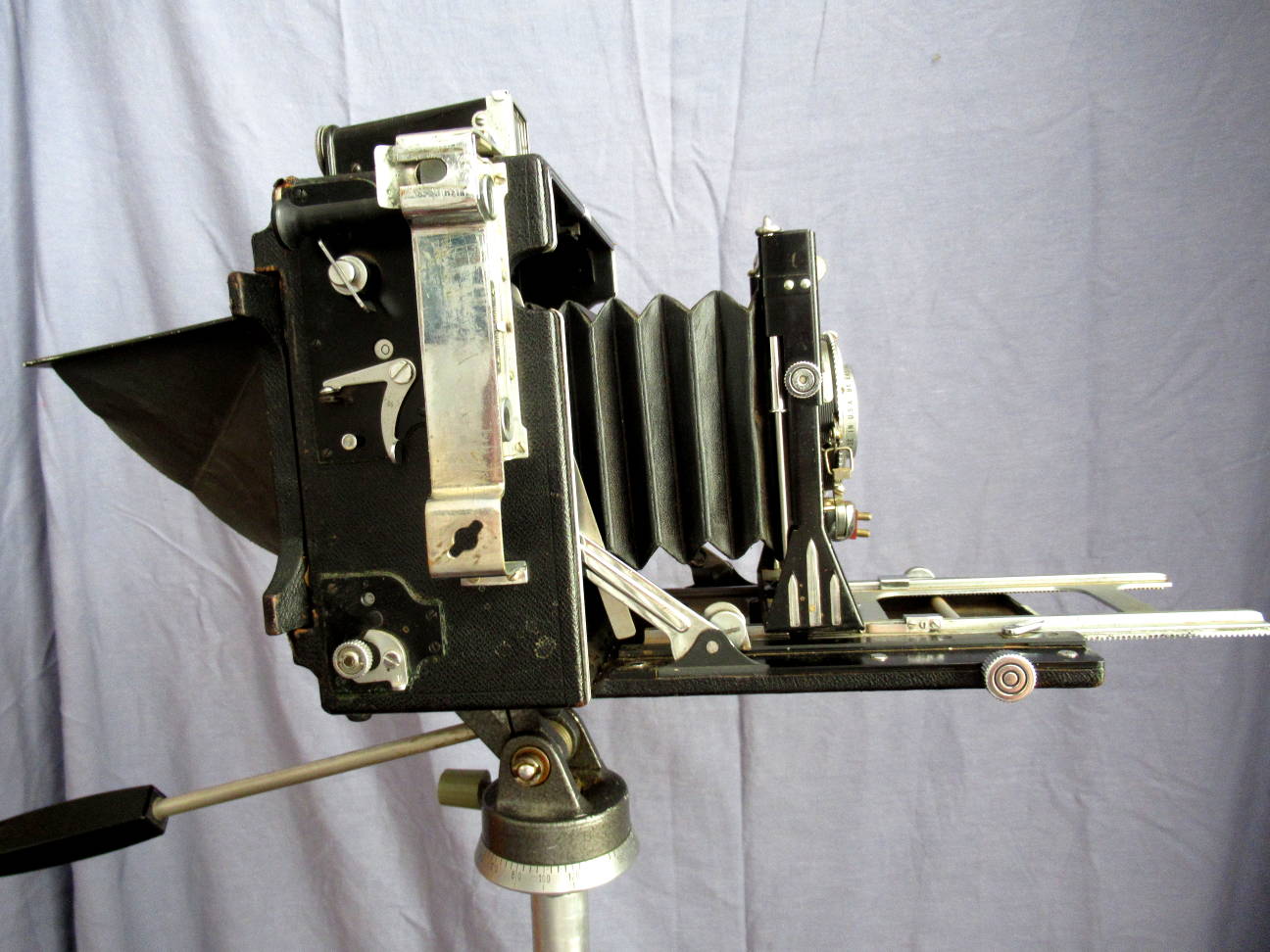

Focussing rail moved out for close focussing.

It's a nice camera, in very good state for its age. If you own old lenses without shutters, you can use them with this camera.
