OddCameras.com                          Ihagee Photoklapp Patent Duplex 710 (6.5x9)

The Ihagee Photoklapp Patent Duplex cameras were produced between 1914 and 1939 by IHAGEE, Dresden. They were made in 4 different formats, 6.5x9 (710), 9x12 (720), 10x15 (730) and 13x18 (740). The
710 (6.5x9) was added in 1925 to the series. The long name refers to the features of the camera. Photoklapp refers to a folding drop bed, Patent refers to the automatic infinity stop which was patented by them and Duplex refers to the double extension.

The Patent Duplex are mid to top level cameras with luminous lenses for the top models and double extension. This is a
6.5x9 710 model, it's in very nice shape.

Lens: Zeiss Tessar 1:4.5 10.5cm,
F4.5-36
Shutter: Compur rim set 1-1/250 B T (working)
Weight: 771gr.
Size: 115x93x50

Some photos:

jpgodd/ihagee_patent_duplex_710_IMG_8221.JPG

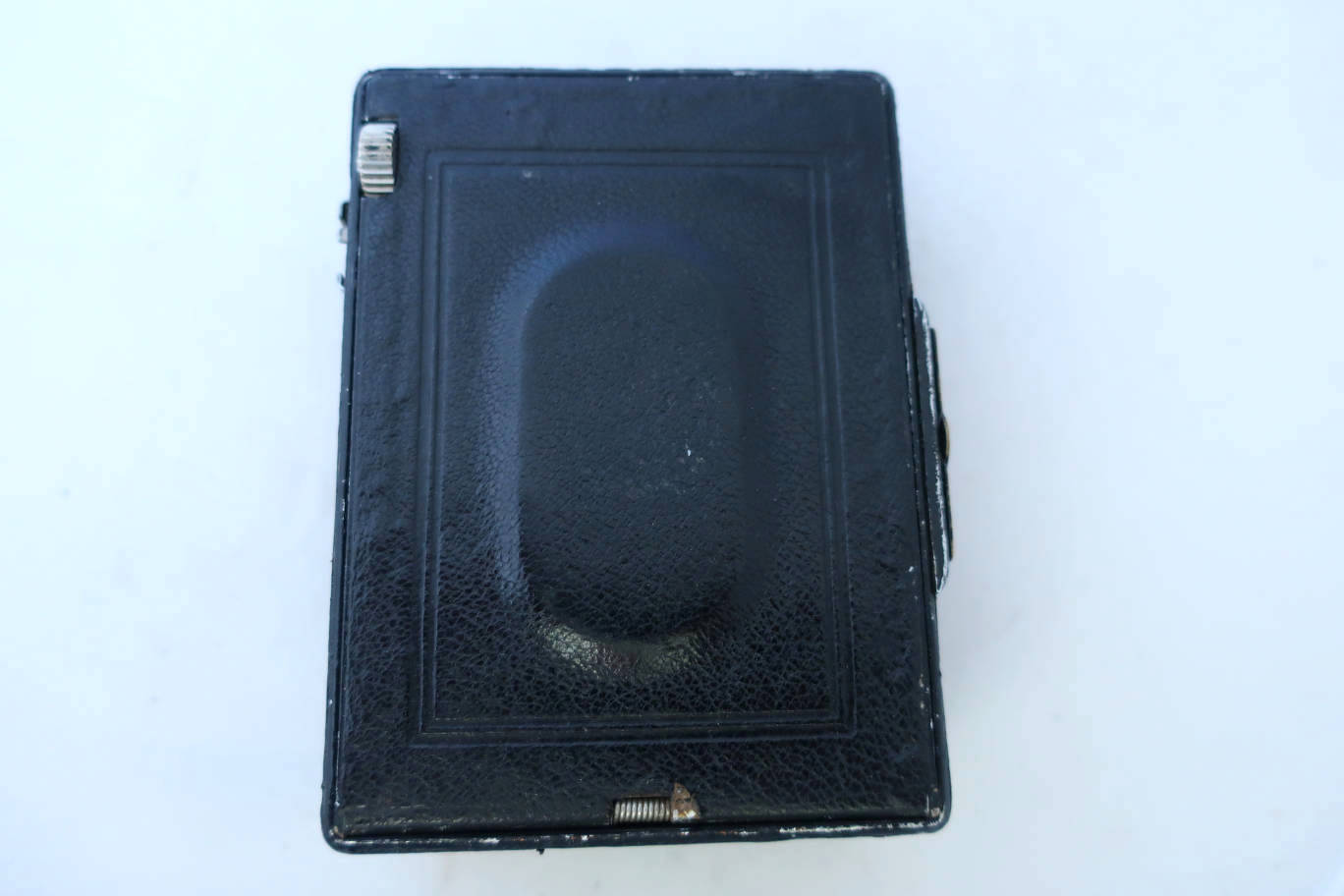

Camera closed. No tripod socket on the bed, one on the bottom of the housing.


jpgodd/ihagee_patent_duplex_710_IMG_8220.JPG

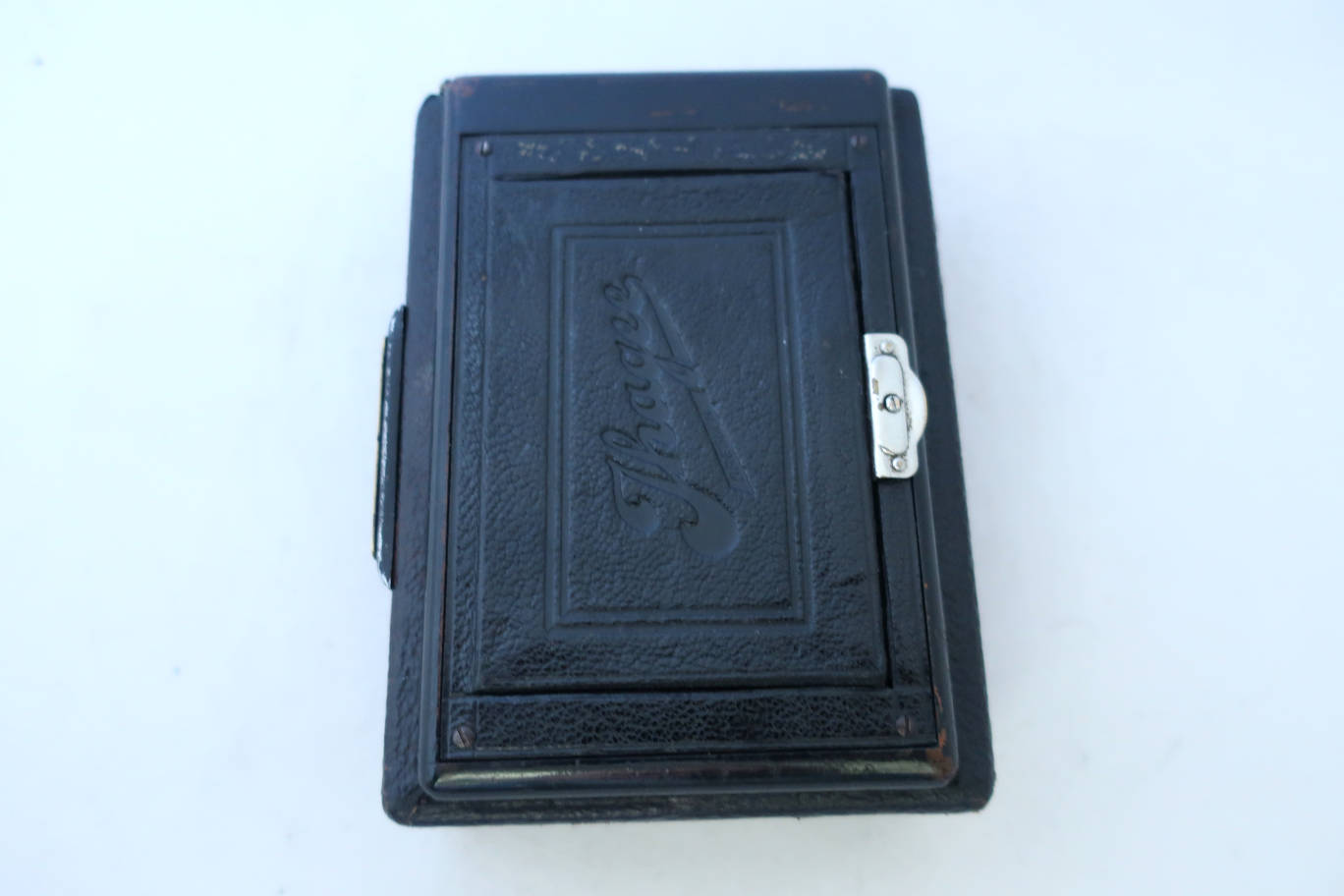

Camera back.

jpgodd/ihagee_patent_duplex_710_IMG_8231.JPG

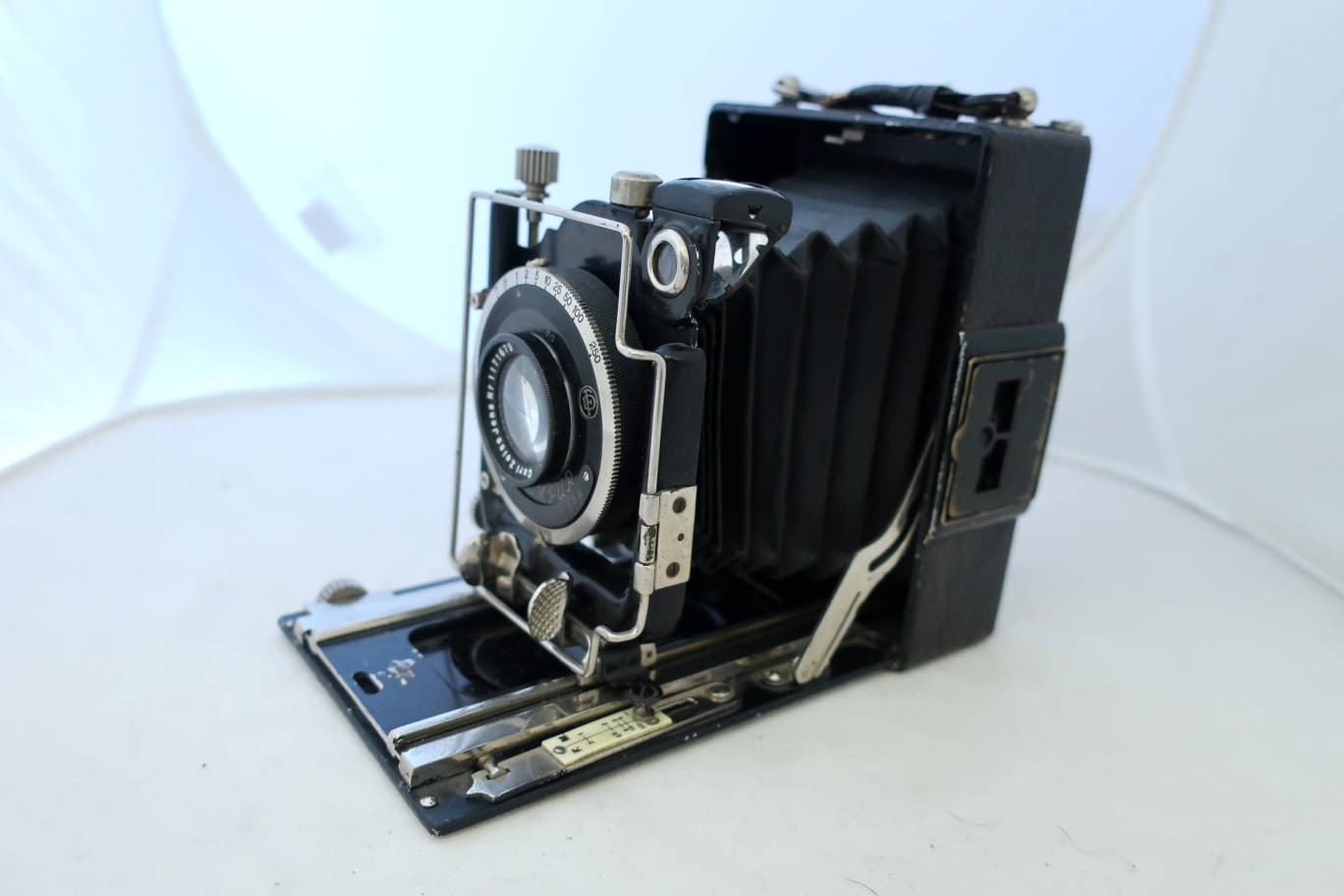

Seen from the right. Brilliant finder with spirit level, can be switched to landscape format. The distance scale on the bed has a stop which is hit extending the camera. As soon as you pull out the focussing wheel on the left, it moves out of the way, for closer focussing. This is the patent the camera name refers to. It's handy, no tab to press for unblocking.

On the left side there is a tripod socket for landscape format on the housing and an early acessory shoe.

jpgodd/ihagee_patent_duplex_710_IMG_8223.JPG

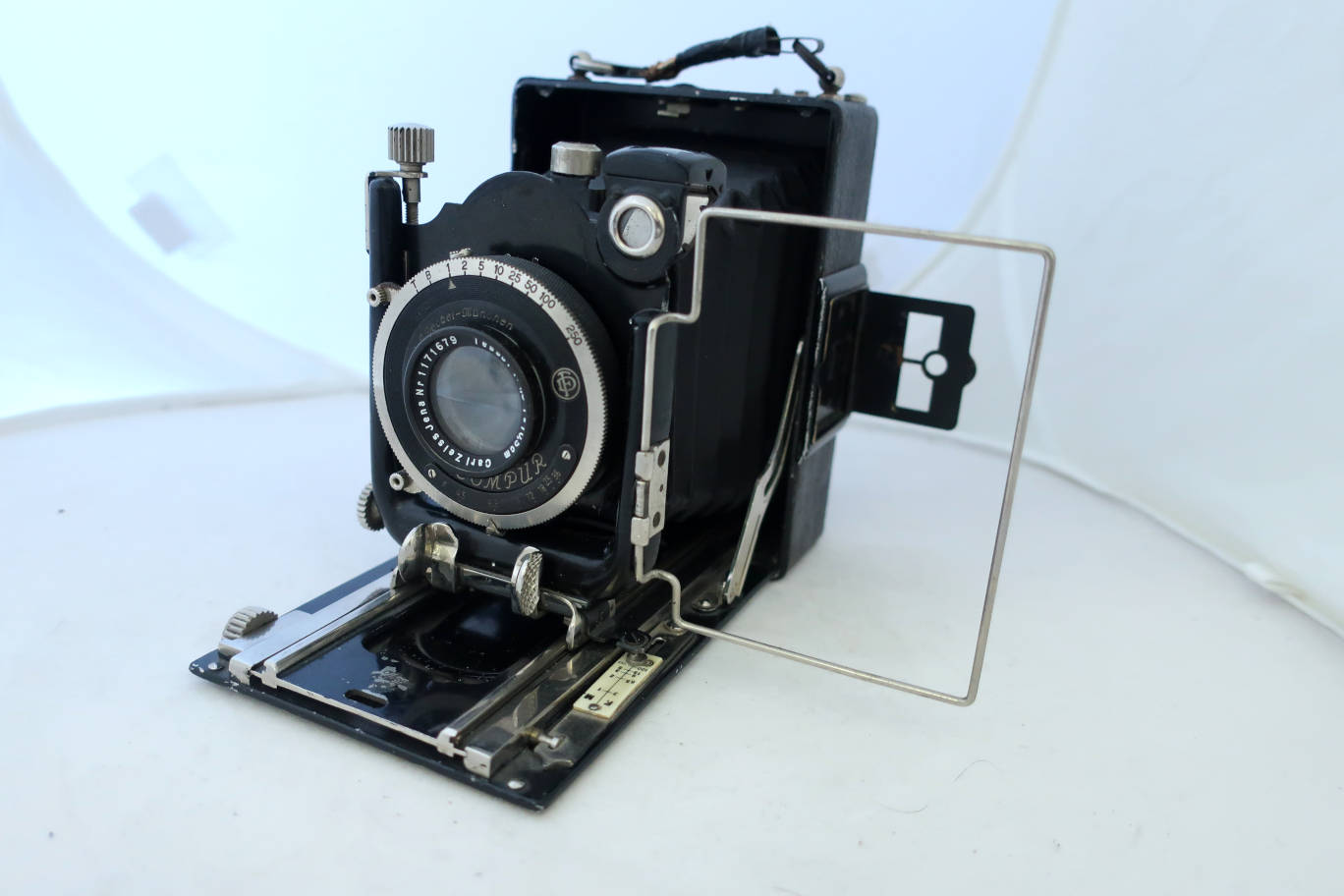

Wire frame and viewer extended.

jpgodd/ihagee_patent_duplex_710_IMG_8229.JPG

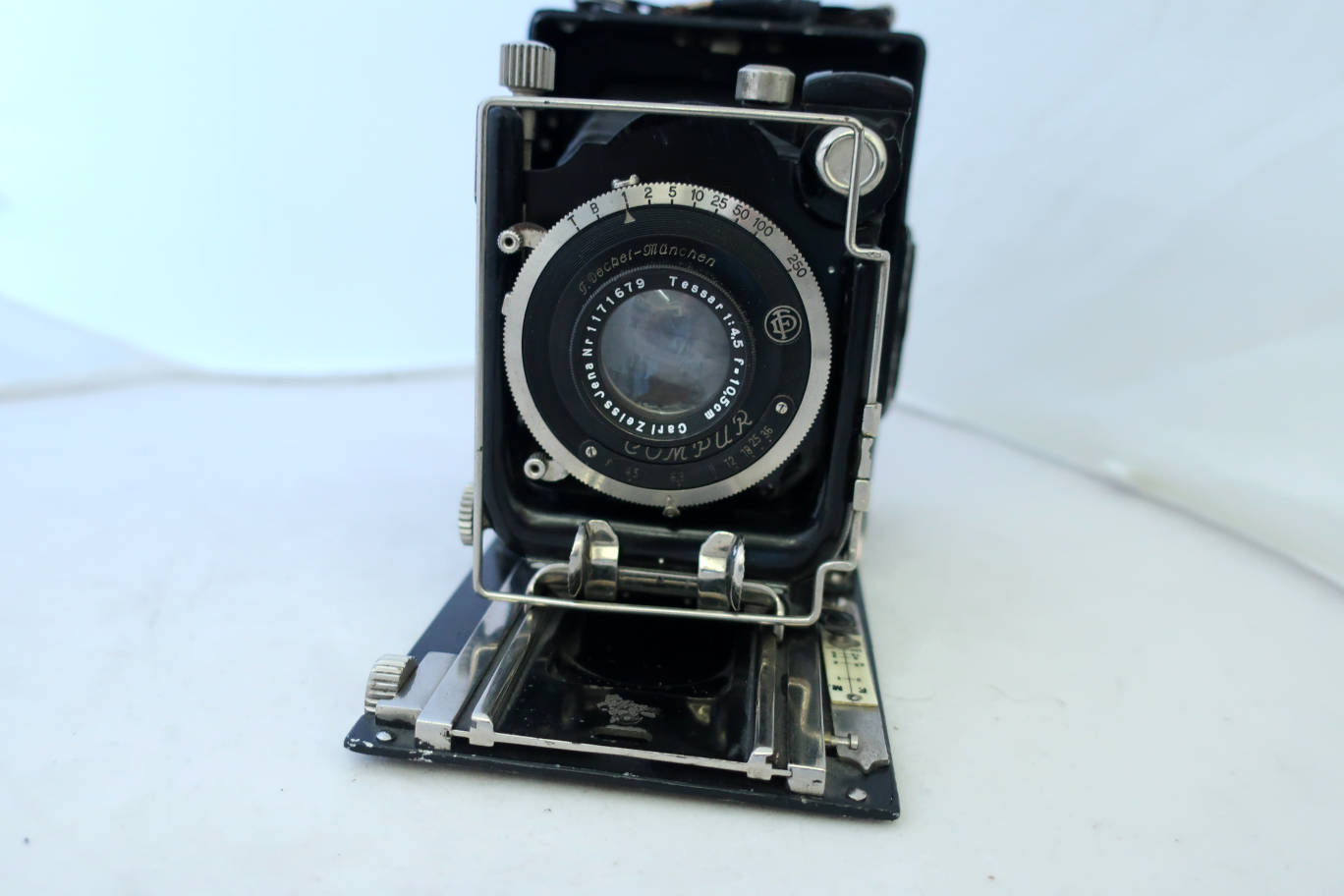

Front.

jpgodd/ihagee_patent_duplex_710_IMG_8230.JPG

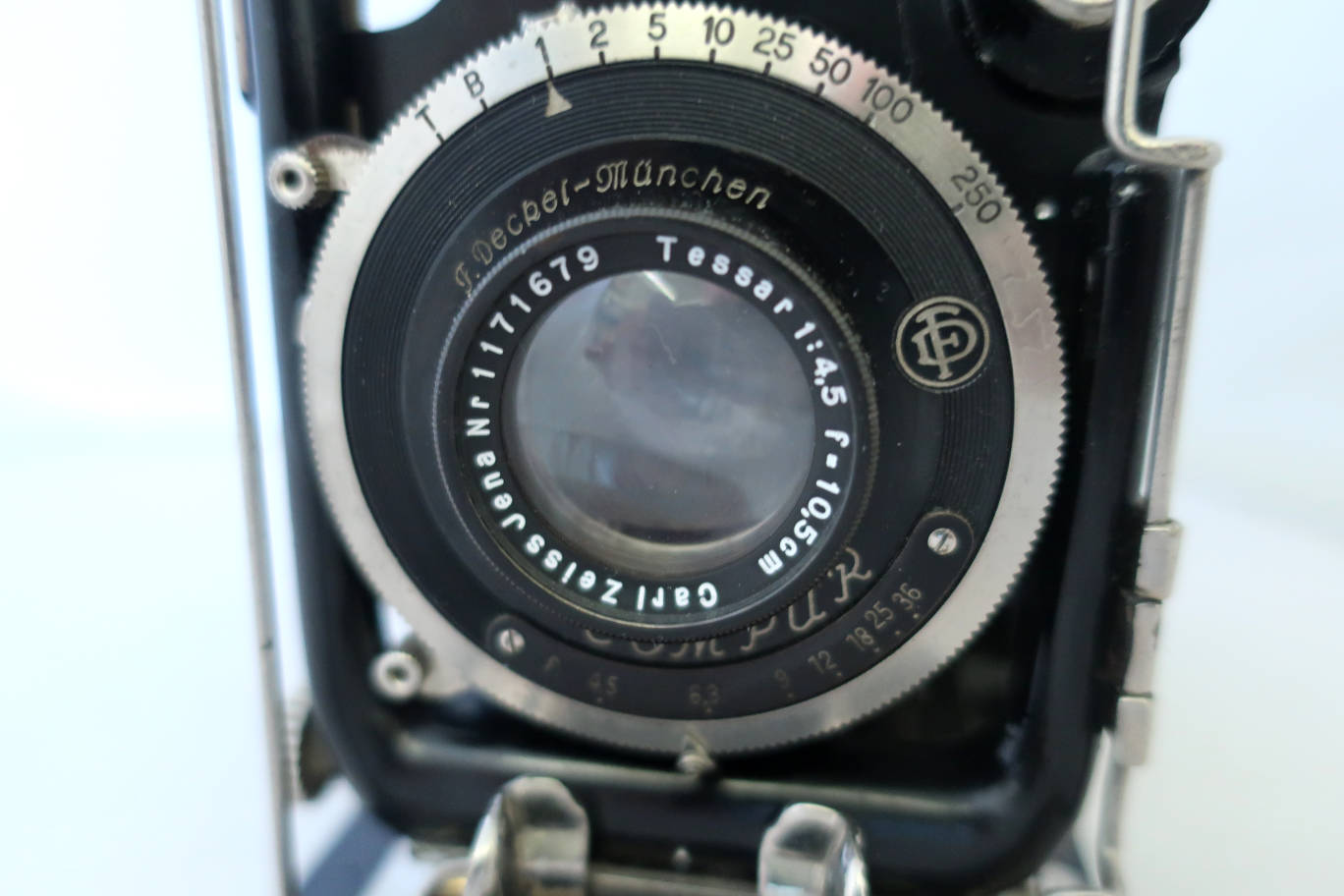

Lens and shutter. According to the lens number the camera dates from late 1930. The change from dial set shutters to rim set shutters happened the year before

jpgodd/ihagee_patent_duplex_710_IMG_8227.JPG

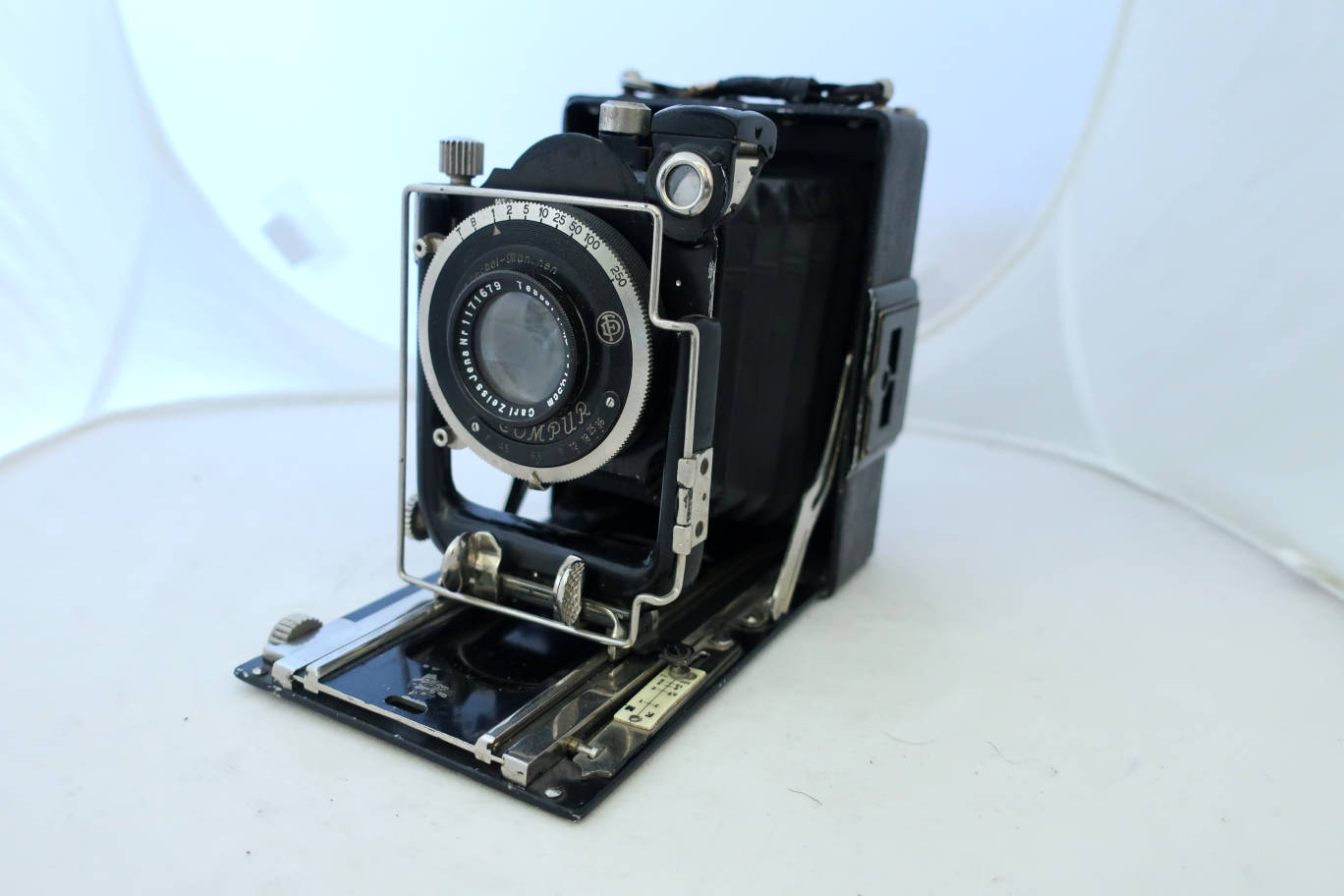

Rise/fall and shift movements are possible.
Risen.

jpgodd/ihagee_patent_duplex_710_IMG_8228.JPG

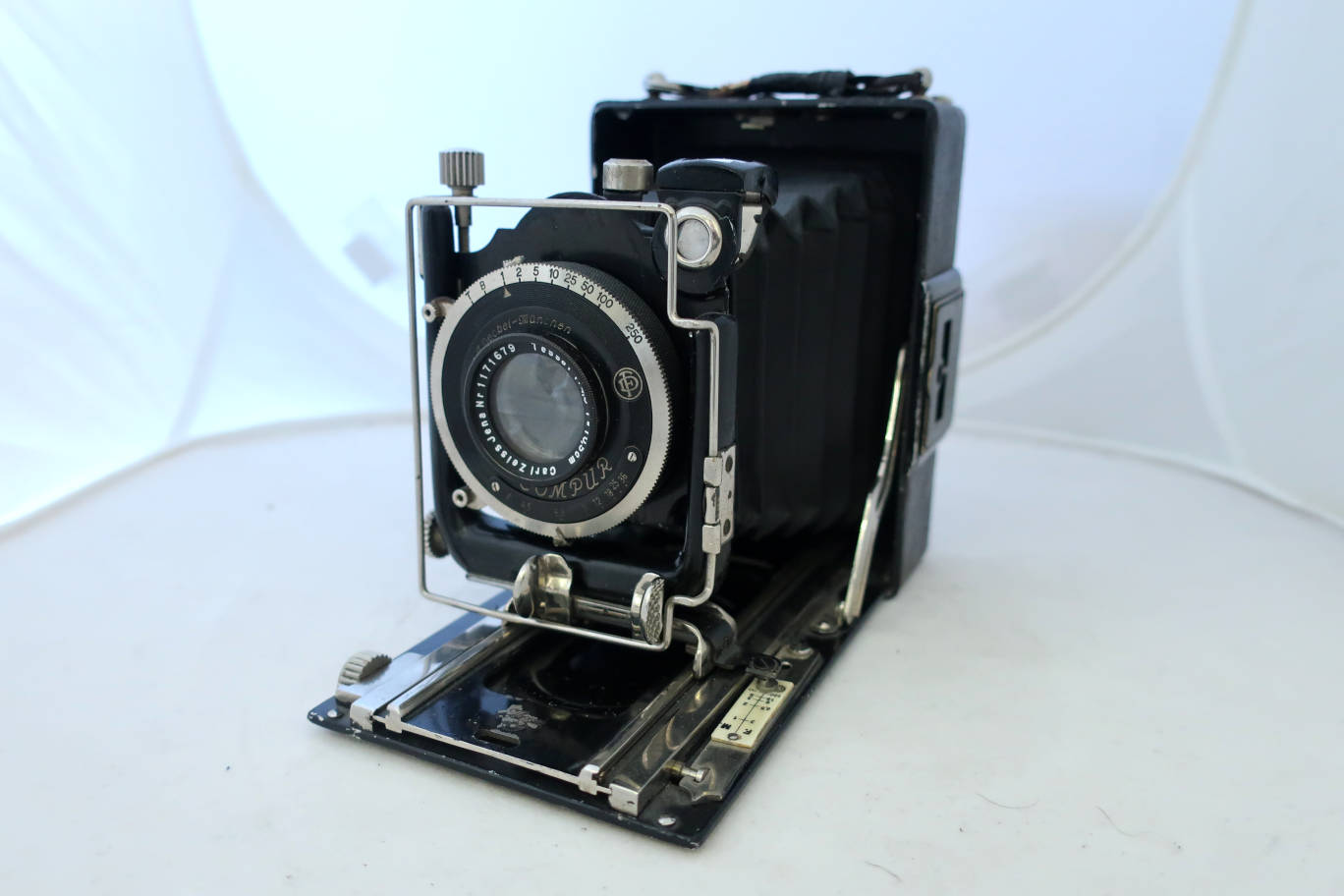

Shifted.

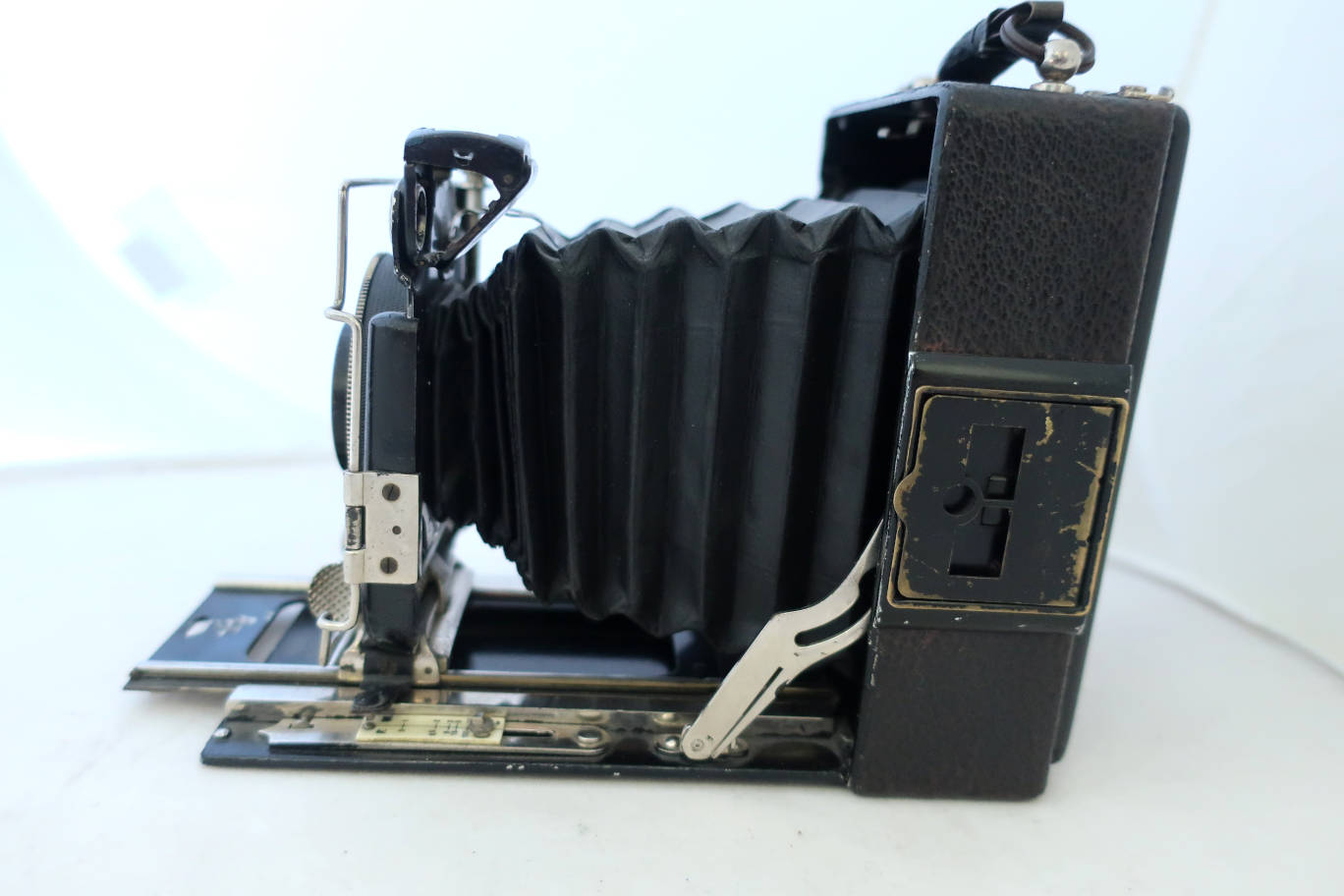

jpgodd/ihagee_patent_duplex_710_IMG_8224.JPGFocussed to ~ 60cm.

jpgodd/ihagee_patent_duplex_710_IMG_8225.JPG

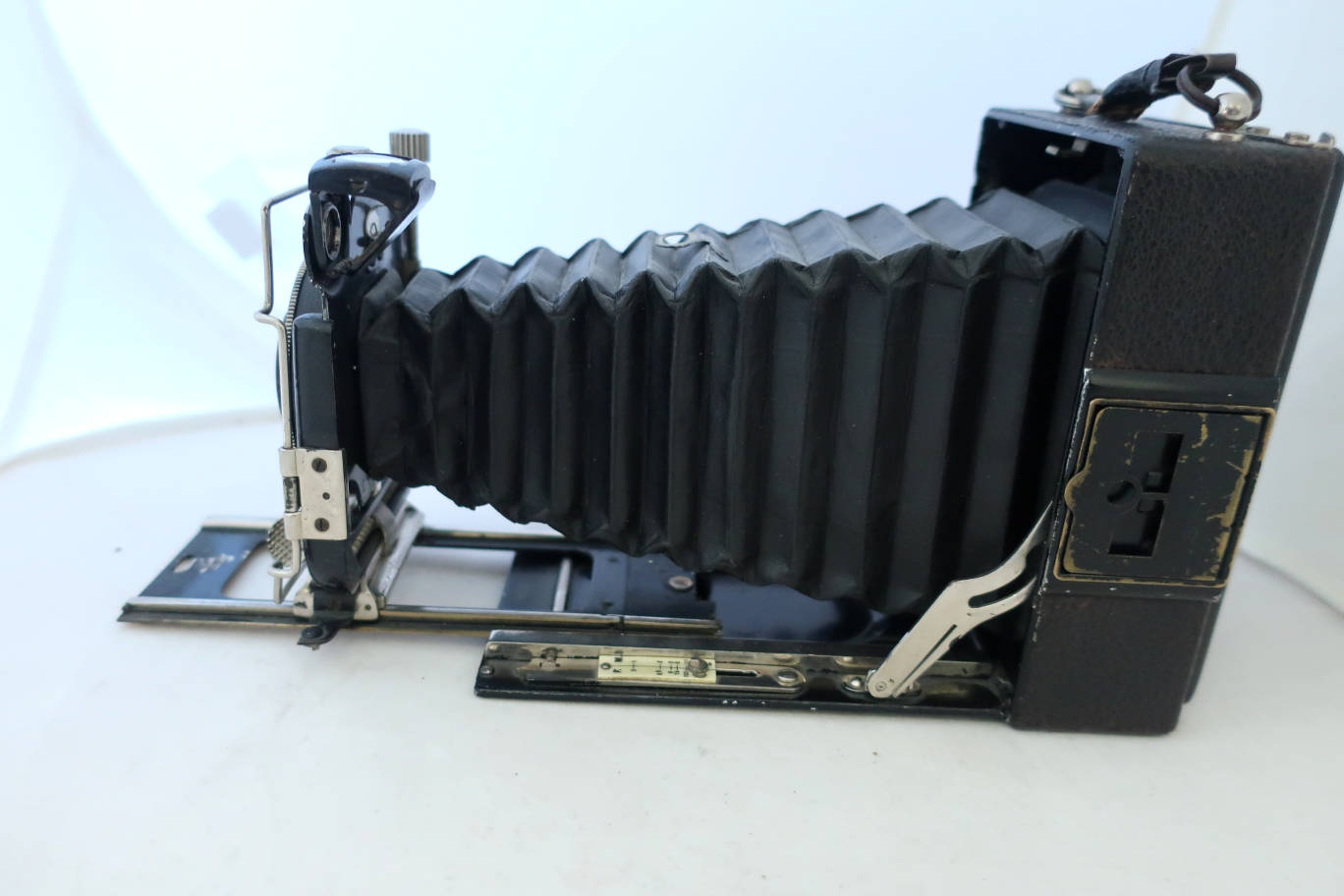

The camera has double extension. On this camera the "rest" part of the rails moves out as well.

jpgodd/ihagee_patent_duplex_710_IMG_8226.JPG

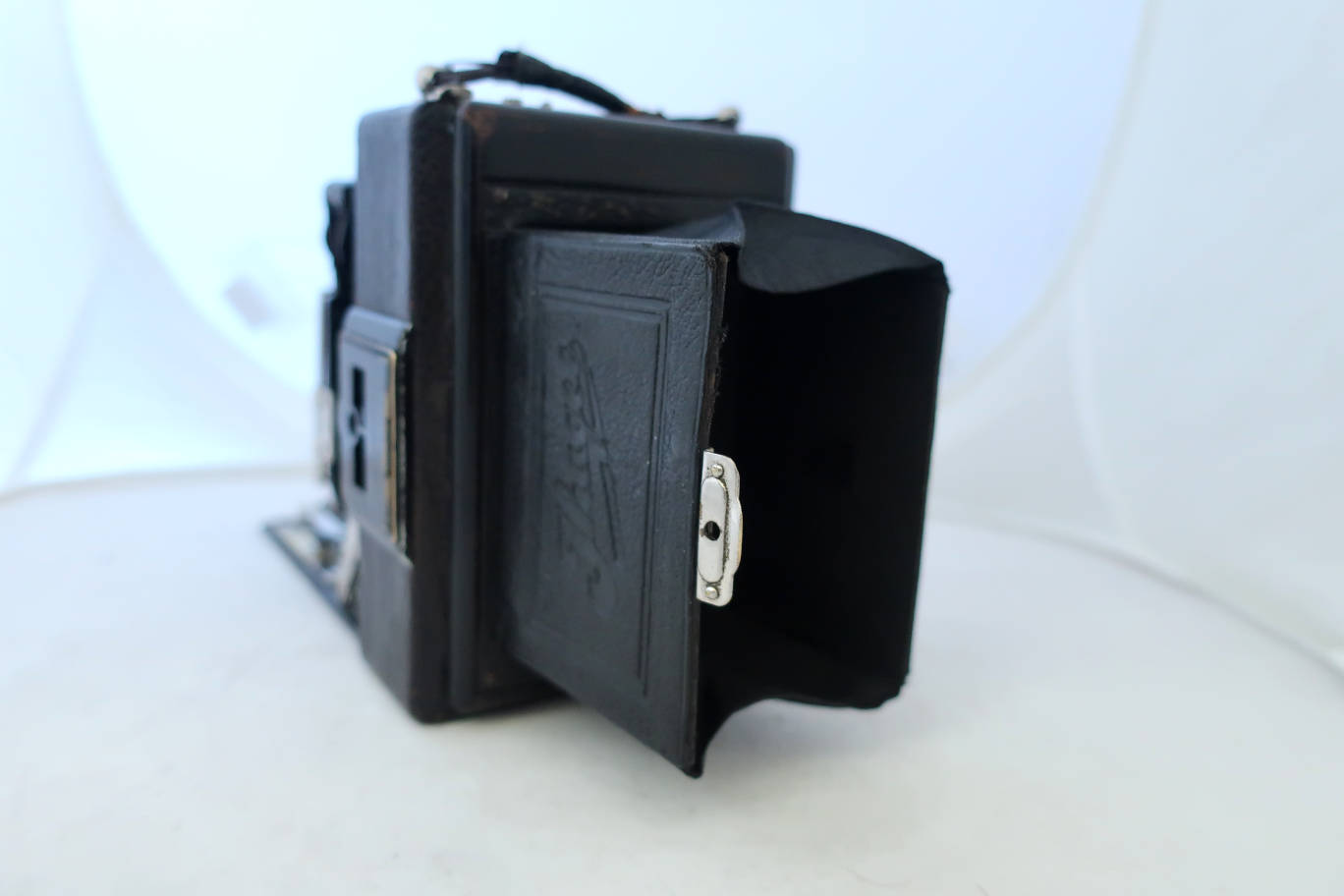

Back, hood open.

jpgodd/ihagee_patent_duplex_710_IMG_8232.JPG

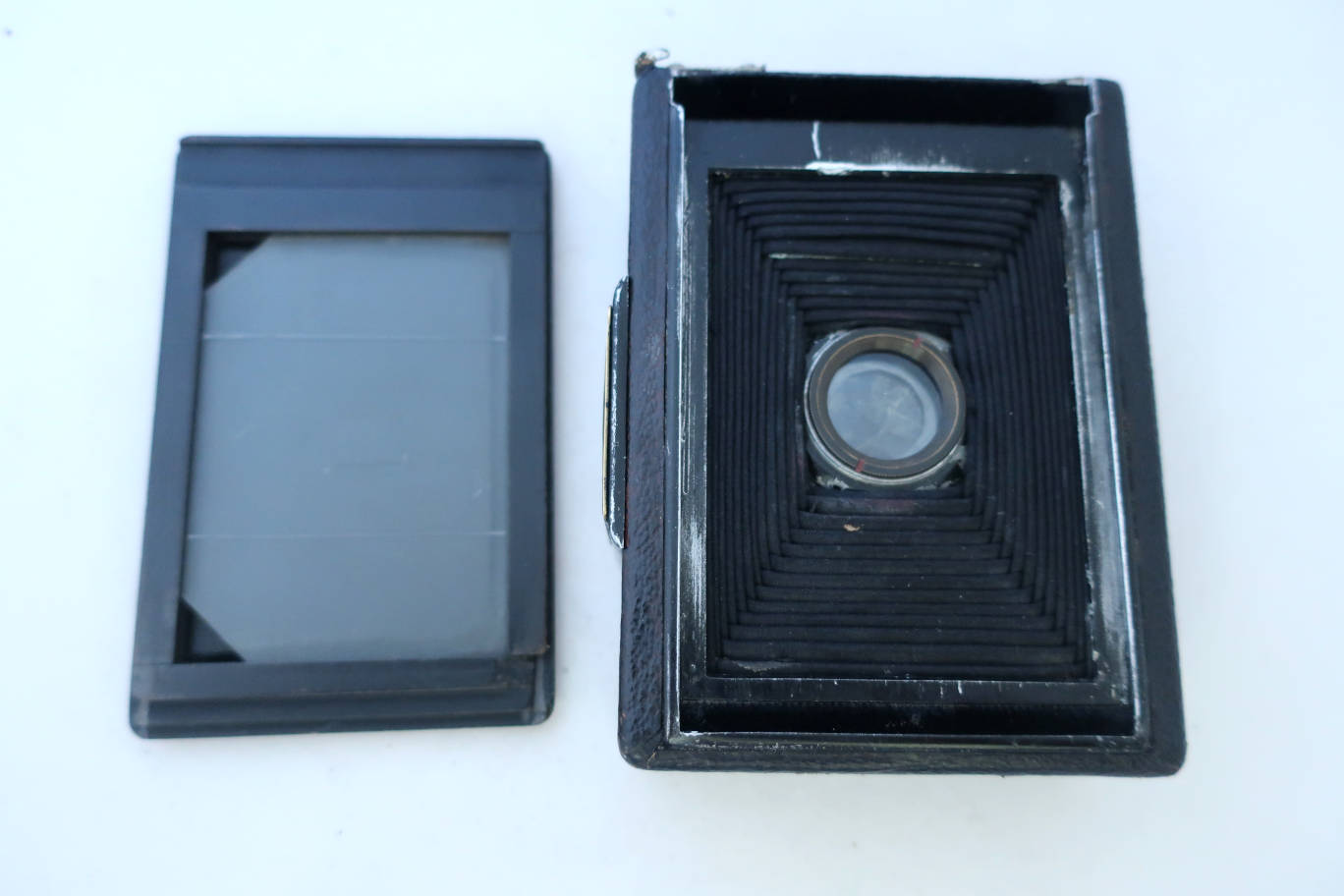

Ground glass deposed.

The camera opens via a button on the top. Lower the bed until it clicks into place. Squeeze the tabs on the front standard and extend, there is an automatic stop. You can either use the finder and the distance indications or the ground glass to focus. Set shutter speed and aperture, cock the shutter. Put a film holder into place, lift the dark slide and take your photo. Do not forget to put the dark slide again. To shut the camera, push the front standard over the end of the bed into the housing, press the hinges of the bed and it will close.

6.5x9 is no longer made on a regular basis. So you would have to build a stock whenever it is available. Think of searching for the inch equivalent,
2.25x3.25. Or you get yourself a 6x9 roll film holder. Rada and Rollex made them, some are branded Plaubel. They tend to be on the expensive side and add size to the camera. Browse old camera part sales. But maybe an old roll film folder would be a better choice.

These cameras are about a century old. The lenses are uncoated and the shutters are simple. Nevertheless they are still nice cameras. Most of these cameras are very cheap. They are simple to use and can give a lot of fun.
